1. 前言
2. 内容

前言

记录一下日常或工作中用到的Unity Shader，以便需要时检索
本篇Shader记录，格式为：序号-标题-效果-贴图资源-参数-代码-拓展内容，代码部分需要手动展开

内容

1. 模拟音频

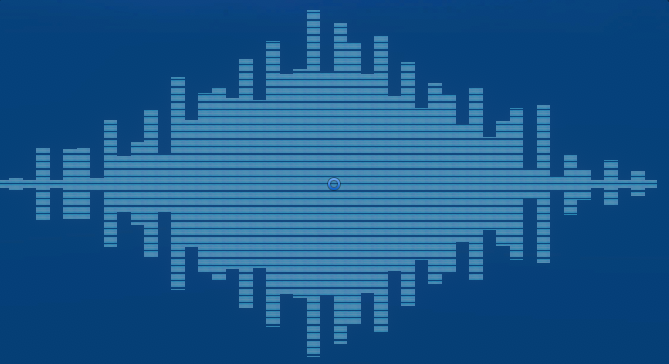

效果：

贴图资源：

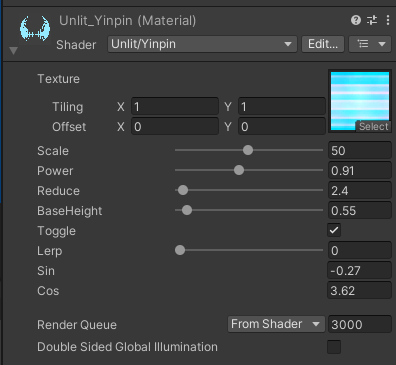

参数：

代码：

点此展开

Shader "Shiki/Yinpin"
{
    Properties
    {
        _MainTex ("Texture", 2D) = "white" {}
        _Scale ("Scale", Range(1, 100)) = 30
        _Pow ("Power", Range(0.1, 2)) = 1
        _Reduce ("Reduce", Range(0, 100)) = 1
        _BaseHeight ("BaseHeight", Range(0, 10)) = 0.1
        [Toggle] _Toggle("Toggle", Float) = 1
        _Lerp("Lerp", Range(0, 1)) = 1
        _Sin ("Sin", Float) = 1
        _Cos ("Cos", Float) = 0
    }
    SubShader
    {
        Tags { "RenderType"="Transparent" "Queue"="Transparent"}
        Blend SrcAlpha OneMinusSrcAlpha

        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag

            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
                float4 color :COLOR;
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 vertex : SV_POSITION;
                float4 color :COLOR;
            };

            sampler2D _MainTex;
            float4 _MainTex_ST;
            float _Scale;
            float _Pow;
            float _Reduce;
            float _Toggle;
            float _BaseHeight;
            float _Lerp;
            float _Sin;
            float _Cos;

            v2f vert (appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);
                o.color = v.color;
                return o;
            }

            fixed4 frag (v2f i) : SV_Target
            {
                _Scale = floor(_Scale);
                int halfScale = floor(_Scale * 0.5);
                i.uv.xy *= _Scale;

                fixed4 col = tex2D(_MainTex, i.uv);
                fixed cola = col.a;
                for(int j = 0; j < _Scale; j++)
                {
                    if (floor(i.uv.x) == j)
                    {
                        float hmax = halfScale-1 - abs(ceil(i.uv.x) - halfScale) + 2 * frac(sin(dot(ceil(i.uv.x), float2(12.98, 78.233)))*43758.05453 + _Time.z) + frac(sign(sin(dot(ceil(i.uv.x)+ _Time.z/6, float2(12.98, 78.233))) )*43758.05453 );
                        hmax =pow(hmax, 1.05) - 2;
                        hmax =pow(hmax, 1.02);
                        hmax =pow(hmax, _Pow) - _Reduce;
                        hmax -= sin(dot(ceil(i.uv.x)+ _Time.z/20, float2(12.98, 78.233)))*_Sin;
                        hmax -= sin(dot(ceil(i.uv.x)+ _Time.z/200, float2(132.982, 738.2533)));
                        hmax -= cos(dot(ceil(i.uv.x)+ _Time.z/20, float2(12.298, 78.2233)))*_Cos;
                        hmax = clamp(hmax, _BaseHeight, halfScale);
                        hmax = lerp(hmax, _BaseHeight, _Lerp);
                        hmax = _Toggle == 1 ? hmax : _BaseHeight;
                        if (i.uv.y > halfScale + hmax || i.uv.y < halfScale - hmax || i.uv.x > _Scale-1.1)
                        {
                            col.a = 0;
                        }
                        else
                        {
                            col.a = 1;
                        }

                    }
                }
                col.a *= cola < 0.1 ? 0 : 1;
                return col * i.color;
            }
            ENDCG
        }
    }
}

拓展：
- 在用于Timeline里K动画时，可以用顶点颜色的一个通道作为_Lerp参数

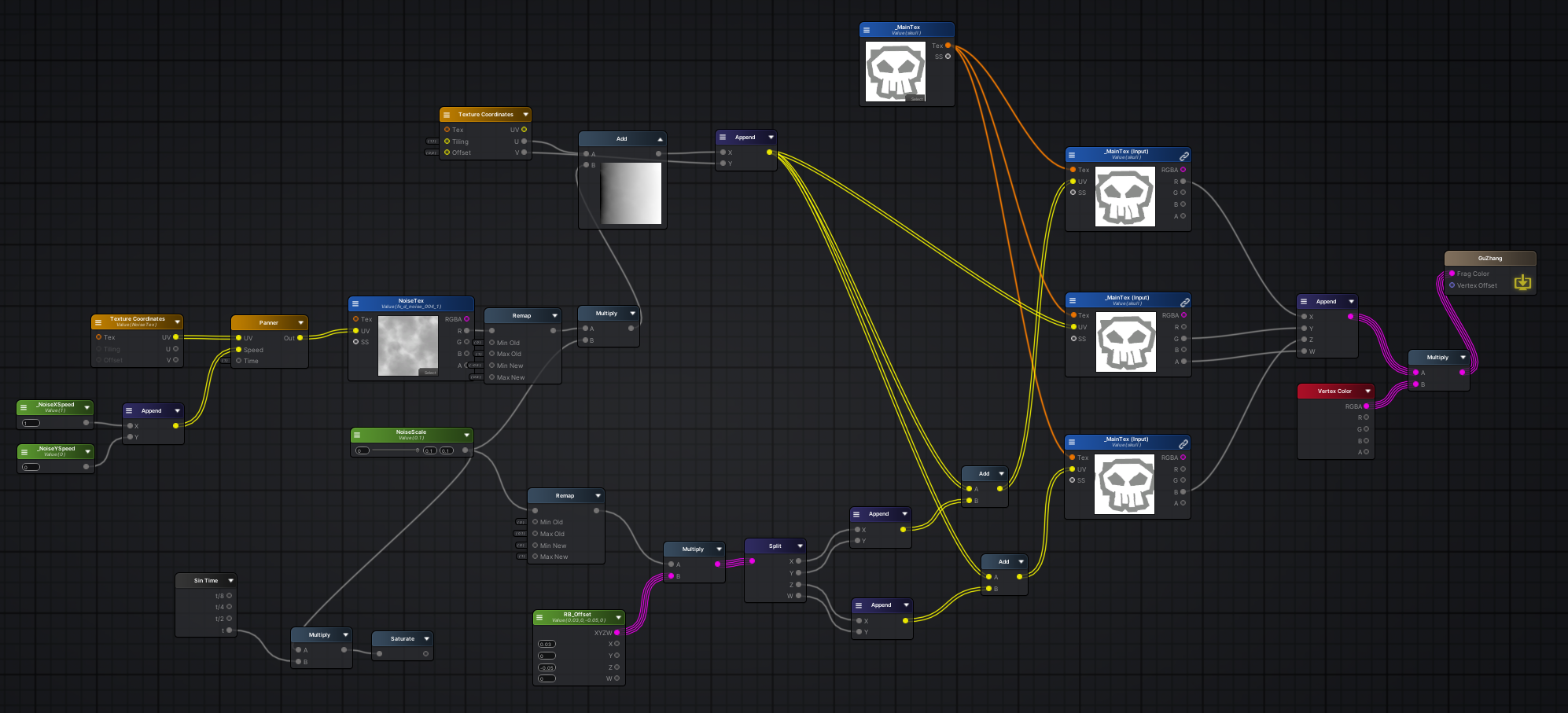

2. 故障效果(红蓝通道偏移+UV扰动)

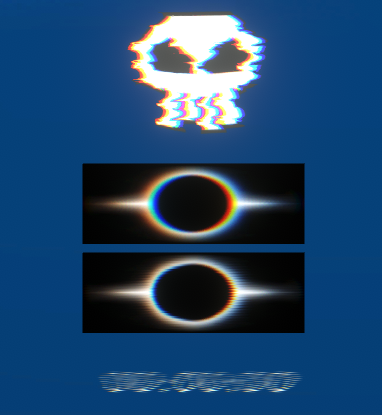

效果：

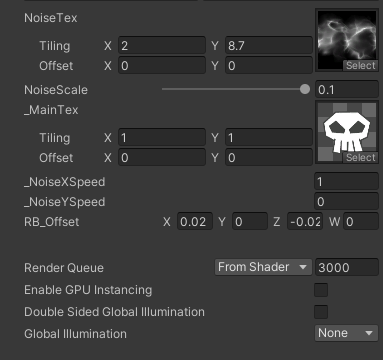

参数：

代码：

点此展开

// Made with Amplify Shader Editor v1.9.3.2
// Available at the Unity Asset Store - http://u3d.as/y3X
Shader "Shiki/GuZhang"
{
	Properties
	{
		_NoiseTex("NoiseTex", 2D) = "white" {}
		_NoiseScale("NoiseScale", Range( 0 , 0.1)) = 0.1
		_MainTex("_MainTex", 2D) = "white" {}
		_NoiseXSpeed("_NoiseXSpeed", Float) = 1
		_NoiseYSpeed("_NoiseYSpeed", Float) = 0
		_RB_Offset("RB_Offset", Vector) = (0.03,0,-0.05,0)

	}

	SubShader
	{


		Tags { "RenderType"="Transparent" "Queue"="Transparent" }
	LOD 100

		CGINCLUDE
		#pragma target 3.0
		ENDCG
		Blend SrcAlpha OneMinusSrcAlpha
		AlphaToMask Off
		Cull Back
		ColorMask RGBA
		ZWrite On
		ZTest LEqual
		Offset 0 , 0



		Pass
		{
			Name "Unlit"

			CGPROGRAM



			#ifndef UNITY_SETUP_STEREO_EYE_INDEX_POST_VERTEX
			//only defining to not throw compilation error over Unity 5.5
			#define UNITY_SETUP_STEREO_EYE_INDEX_POST_VERTEX(input)
			#endif
			#pragma vertex vert
			#pragma fragment frag
			#pragma multi_compile_instancing
			#include "UnityCG.cginc"
			#include "UnityShaderVariables.cginc"


			struct appdata
			{
				float4 vertex : POSITION;
				float4 color : COLOR;
				float4 ase_texcoord : TEXCOORD0;
				UNITY_VERTEX_INPUT_INSTANCE_ID
			};

			struct v2f
			{
				float4 vertex : SV_POSITION;
				#ifdef ASE_NEEDS_FRAG_WORLD_POSITION
				float3 worldPos : TEXCOORD0;
				#endif
				float4 ase_texcoord1 : TEXCOORD1;
				float4 ase_color : COLOR;
				UNITY_VERTEX_INPUT_INSTANCE_ID
				UNITY_VERTEX_OUTPUT_STEREO
			};

			uniform sampler2D _MainTex;
			uniform sampler2D _NoiseTex;
			uniform float _NoiseXSpeed;
			uniform float _NoiseYSpeed;
			uniform float4 _NoiseTex_ST;
			uniform float _NoiseScale;
			uniform float4 _RB_Offset;


			v2f vert ( appdata v )
			{
				v2f o;
				UNITY_SETUP_INSTANCE_ID(v);
				UNITY_INITIALIZE_VERTEX_OUTPUT_STEREO(o);
				UNITY_TRANSFER_INSTANCE_ID(v, o);

				o.ase_texcoord1.xy = v.ase_texcoord.xy;
				o.ase_color = v.color;

				//setting value to unused interpolator channels and avoid initialization warnings
				o.ase_texcoord1.zw = 0;
				float3 vertexValue = float3(0, 0, 0);
				#if ASE_ABSOLUTE_VERTEX_POS
				vertexValue = v.vertex.xyz;
				#endif
				vertexValue = vertexValue;
				#if ASE_ABSOLUTE_VERTEX_POS
				v.vertex.xyz = vertexValue;
				#else
				v.vertex.xyz += vertexValue;
				#endif
				o.vertex = UnityObjectToClipPos(v.vertex);

				#ifdef ASE_NEEDS_FRAG_WORLD_POSITION
				o.worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;
				#endif
				return o;
			}

			fixed4 frag (v2f i ) : SV_Target
			{
				UNITY_SETUP_INSTANCE_ID(i);
				UNITY_SETUP_STEREO_EYE_INDEX_POST_VERTEX(i);
				fixed4 finalColor;
				#ifdef ASE_NEEDS_FRAG_WORLD_POSITION
				float3 WorldPosition = i.worldPos;
				#endif
				float2 texCoord15 = i.ase_texcoord1.xy * float2( 1,1 ) + float2( 0,0 );
				float2 appendResult14 = (float2(_NoiseXSpeed , _NoiseYSpeed));
				float2 uv_NoiseTex = i.ase_texcoord1.xy * _NoiseTex_ST.xy + _NoiseTex_ST.zw;
				float2 panner10 = ( 1.0 * _Time.y * appendResult14 + uv_NoiseTex);
				float2 appendResult18 = (float2(( texCoord15.x + ( (-0.5 + (tex2D( _NoiseTex, panner10 ).r - 0.0) * (0.5 - -0.5) / (1.0 - 0.0)) * _NoiseScale ) ) , texCoord15.y));
				float4 break24 = ( (0.0 + (_NoiseScale - 0.0) * (1.0 - 0.0) / (0.1 - 0.0)) * _RB_Offset );
				float2 appendResult26 = (float2(break24.x , break24.y));
				float4 tex2DNode3 = tex2D( _MainTex, appendResult18 );
				float2 appendResult27 = (float2(break24.z , break24.w));
				float4 appendResult29 = (float4(tex2D( _MainTex, ( appendResult18 + appendResult26 ) ).r , tex2DNode3.g , tex2D( _MainTex, ( appendResult18 + appendResult27 ) ).b , tex2DNode3.a));


				finalColor = ( appendResult29 * i.ase_color );
				return finalColor;
			}
			ENDCG
		}
	}
	CustomEditor "ASEMaterialInspector"

	Fallback Off
}
/*ASEBEGIN
Version=19302
Node;AmplifyShaderEditor.RangedFloatNode;11;-1830.574,67.72733;Inherit;False;Property;_NoiseXSpeed;_NoiseXSpeed;3;0;Create;True;0;0;0;False;0;False;1;1;0;0;0;1;FLOAT;0
Node;AmplifyShaderEditor.RangedFloatNode;12;-1829.274,160.0273;Inherit;False;Property;_NoiseYSpeed;_NoiseYSpeed;4;0;Create;True;0;0;0;False;0;False;0;0;0;0;0;1;FLOAT;0
Node;AmplifyShaderEditor.TextureCoordinatesNode;9;-1675.158,-110.406;Inherit;False;0;8;2;3;2;SAMPLER2D;;False;0;FLOAT2;1,1;False;1;FLOAT2;0,0;False;5;FLOAT2;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.DynamicAppendNode;14;-1610.872,74.22719;Inherit;False;FLOAT2;4;0;FLOAT;0;False;1;FLOAT;0;False;2;FLOAT;0;False;3;FLOAT;0;False;1;FLOAT2;0
Node;AmplifyShaderEditor.PannerNode;10;-1384.673,-109.0727;Inherit;False;3;0;FLOAT2;0,0;False;2;FLOAT2;0,0;False;1;FLOAT;1;False;1;FLOAT2;0
Node;AmplifyShaderEditor.RangedFloatNode;19;-1135.771,125.3111;Inherit;False;Property;_NoiseScale;NoiseScale;1;0;Create;True;0;0;0;False;0;False;0.1;0.1;0;0.1;0;1;FLOAT;0
Node;AmplifyShaderEditor.SamplerNode;8;-1139.87,-148.3622;Inherit;True;Property;_NoiseTex;NoiseTex;0;0;Create;True;0;0;0;False;0;False;-1;668c5cbd895555247a9d985bc86082f7;a60345c2a57b966488b08c6c6578d094;True;0;False;white;Auto;False;Object;-1;Auto;Texture2D;8;0;SAMPLER2D;;False;1;FLOAT2;0,0;False;2;FLOAT;0;False;3;FLOAT2;0,0;False;4;FLOAT2;0,0;False;5;FLOAT;1;False;6;FLOAT;0;False;7;SAMPLERSTATE;;False;5;COLOR;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.TFHCRemapNode;21;-766.4503,251.023;Inherit;False;5;0;FLOAT;0;False;1;FLOAT;0;False;2;FLOAT;0.1;False;3;FLOAT;0;False;4;FLOAT;1;False;1;FLOAT;0
Node;AmplifyShaderEditor.Vector4Node;23;-755.7201,505.0249;Inherit;False;Property;_RB_Offset;RB_Offset;5;0;Create;True;0;0;0;False;0;False;0.03,0,-0.05,0;0.03,0.15,-0.03,0.69;0;5;FLOAT4;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.TFHCRemapNode;30;-856.197,-123.453;Inherit;False;5;0;FLOAT;0;False;1;FLOAT;0;False;2;FLOAT;1;False;3;FLOAT;-0.5;False;4;FLOAT;0.5;False;1;FLOAT;0
Node;AmplifyShaderEditor.TextureCoordinatesNode;15;-949.364,-542.825;Inherit;False;0;-1;2;3;2;SAMPLER2D;;False;0;FLOAT2;1,1;False;1;FLOAT2;0,0;False;5;FLOAT2;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.SimpleMultiplyOpNode;22;-482.7201,363.0249;Inherit;False;2;2;0;FLOAT;0;False;1;FLOAT4;0,0,0,0;False;1;FLOAT4;0
Node;AmplifyShaderEditor.SimpleMultiplyOpNode;20;-662.3416,-128.7689;Inherit;False;2;2;0;FLOAT;0;False;1;FLOAT;0;False;1;FLOAT;0
Node;AmplifyShaderEditor.SimpleAddOpNode;16;-660.3727,-492.8383;Inherit;True;2;2;0;FLOAT;0;False;1;FLOAT;0;False;1;FLOAT;0
Node;AmplifyShaderEditor.BreakToComponentsNode;24;-313.7201,357.0249;Inherit;False;FLOAT4;1;0;FLOAT4;0,0,0,0;False;16;FLOAT;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4;FLOAT;5;FLOAT;6;FLOAT;7;FLOAT;8;FLOAT;9;FLOAT;10;FLOAT;11;FLOAT;12;FLOAT;13;FLOAT;14;FLOAT;15
Node;AmplifyShaderEditor.DynamicAppendNode;18;-374.5093,-495.9621;Inherit;False;FLOAT2;4;0;FLOAT;0;False;1;FLOAT;0;False;2;FLOAT;0;False;3;FLOAT;0;False;1;FLOAT2;0
Node;AmplifyShaderEditor.DynamicAppendNode;26;-95.62512,290.1249;Inherit;False;FLOAT2;4;0;FLOAT;0;False;1;FLOAT;0;False;2;FLOAT;0;False;3;FLOAT;0;False;1;FLOAT2;0
Node;AmplifyShaderEditor.DynamicAppendNode;27;-91.62512,480.1249;Inherit;False;FLOAT2;4;0;FLOAT;0;False;1;FLOAT;0;False;2;FLOAT;0;False;3;FLOAT;0;False;1;FLOAT2;0
Node;AmplifyShaderEditor.SimpleAddOpNode;25;178.6808,389.2386;Inherit;False;2;2;0;FLOAT2;0,0;False;1;FLOAT2;0,0;False;1;FLOAT2;0
Node;AmplifyShaderEditor.SimpleAddOpNode;28;137.3749,206.1249;Inherit;False;2;2;0;FLOAT2;0,0;False;1;FLOAT2;0,0;False;1;FLOAT2;0
Node;AmplifyShaderEditor.TexturePropertyNode;6;2.598404,-645.4363;Inherit;True;Property;_MainTex;_MainTex;2;0;Create;True;0;0;0;False;0;False;0a83f9be848c10041841b004689e02d6;b5ad082f61c500d4294842ce4f7f3f56;False;white;Auto;Texture2D;-1;0;2;SAMPLER2D;0;SAMPLERSTATE;1
Node;AmplifyShaderEditor.SamplerNode;4;373.9305,144.8178;Inherit;True;Property;_TextureSample2;Texture Sample 2;3;0;Create;True;0;0;0;False;0;False;-1;None;None;True;0;False;white;Auto;False;Object;-1;Auto;Texture2D;8;0;SAMPLER2D;;False;1;FLOAT2;0,0;False;2;FLOAT;0;False;3;FLOAT2;0,0;False;4;FLOAT2;0,0;False;5;FLOAT;1;False;6;FLOAT;0;False;7;SAMPLERSTATE;;False;5;COLOR;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.SamplerNode;2;374.7539,-454.3615;Inherit;True;Property;_TextureSample0;Texture Sample 0;1;0;Create;True;0;0;0;False;0;False;-1;None;None;True;0;False;white;Auto;False;Object;-1;Auto;Texture2D;8;0;SAMPLER2D;;False;1;FLOAT2;0,0;False;2;FLOAT;0;False;3;FLOAT2;0,0;False;4;FLOAT2;0,0;False;5;FLOAT;1;False;6;FLOAT;0;False;7;SAMPLERSTATE;;False;5;COLOR;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.SamplerNode;3;376.0417,-150.7332;Inherit;True;Property;_TextureSample1;Texture Sample 1;2;0;Create;True;0;0;0;False;0;False;-1;None;None;True;0;False;white;Auto;False;Object;-1;Auto;Texture2D;8;0;SAMPLER2D;;False;1;FLOAT2;0,0;False;2;FLOAT;0;False;3;FLOAT2;0,0;False;4;FLOAT2;0,0;False;5;FLOAT;1;False;6;FLOAT;0;False;7;SAMPLERSTATE;;False;5;COLOR;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.DynamicAppendNode;29;857.0964,-148.4408;Inherit;False;FLOAT4;4;0;FLOAT;0;False;1;FLOAT;0;False;2;FLOAT;0;False;3;FLOAT;0;False;1;FLOAT4;0
Node;AmplifyShaderEditor.VertexColorNode;34;858.7769,38.08496;Inherit;False;0;5;COLOR;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.SimpleMultiplyOpNode;32;-1260.176,541.6824;Inherit;False;2;2;0;FLOAT;0;False;1;FLOAT;0;False;1;FLOAT;0
Node;AmplifyShaderEditor.SinTimeNode;31;-1499.841,427.8833;Inherit;False;0;5;FLOAT4;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.SaturateNode;33;-1090.832,549.2119;Inherit;False;1;0;FLOAT;0;False;1;FLOAT;0
Node;AmplifyShaderEditor.SimpleMultiplyOpNode;35;1089.777,-31.91504;Inherit;False;2;2;0;FLOAT4;0,0,0,0;False;1;COLOR;0,0,0,0;False;1;FLOAT4;0
Node;AmplifyShaderEditor.TemplateMultiPassMasterNode;0;1164.958,-238.0224;Float;False;True;-1;2;ASEMaterialInspector;100;5;GuZhang;0770190933193b94aaa3065e307002fa;True;Unlit;0;0;Unlit;2;True;True;2;5;False;;10;False;;0;1;False;;0;False;;True;0;False;;0;False;;False;False;False;False;False;False;False;False;False;True;0;False;;False;True;0;False;;False;True;True;True;True;True;0;False;;False;False;False;False;False;False;False;True;False;0;False;;255;False;;255;False;;0;False;;0;False;;0;False;;0;False;;0;False;;0;False;;0;False;;0;False;;False;True;1;False;;True;3;False;;True;True;0;False;;0;False;;True;2;RenderType=Transparent=RenderType;Queue=Transparent=Queue=0;True;2;False;0;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;0;;0;0;Standard;1;Vertex Position,InvertActionOnDeselection;1;0;0;1;True;False;;False;0
WireConnection;14;0;11;0
WireConnection;14;1;12;0
WireConnection;10;0;9;0
WireConnection;10;2;14;0
WireConnection;8;1;10;0
WireConnection;21;0;19;0
WireConnection;30;0;8;1
WireConnection;22;0;21;0
WireConnection;22;1;23;0
WireConnection;20;0;30;0
WireConnection;20;1;19;0
WireConnection;16;0;15;1
WireConnection;16;1;20;0
WireConnection;24;0;22;0
WireConnection;18;0;16;0
WireConnection;18;1;15;2
WireConnection;26;0;24;0
WireConnection;26;1;24;1
WireConnection;27;0;24;2
WireConnection;27;1;24;3
WireConnection;25;0;18;0
WireConnection;25;1;27;0
WireConnection;28;0;18;0
WireConnection;28;1;26;0
WireConnection;4;0;6;0
WireConnection;4;1;25;0
WireConnection;2;0;6;0
WireConnection;2;1;28;0
WireConnection;3;0;6;0
WireConnection;3;1;18;0
WireConnection;29;0;2;1
WireConnection;29;1;3;2
WireConnection;29;2;4;3
WireConnection;29;3;3;4
WireConnection;32;0;19;0
WireConnection;32;1;31;4
WireConnection;33;0;32;0
WireConnection;35;0;29;0
WireConnection;35;1;34;0
WireConnection;0;0;35;0
ASEEND*/
//CHKSM=CC8D4FA94542B4FA994824F1F95DA6E2BF1E8A0B

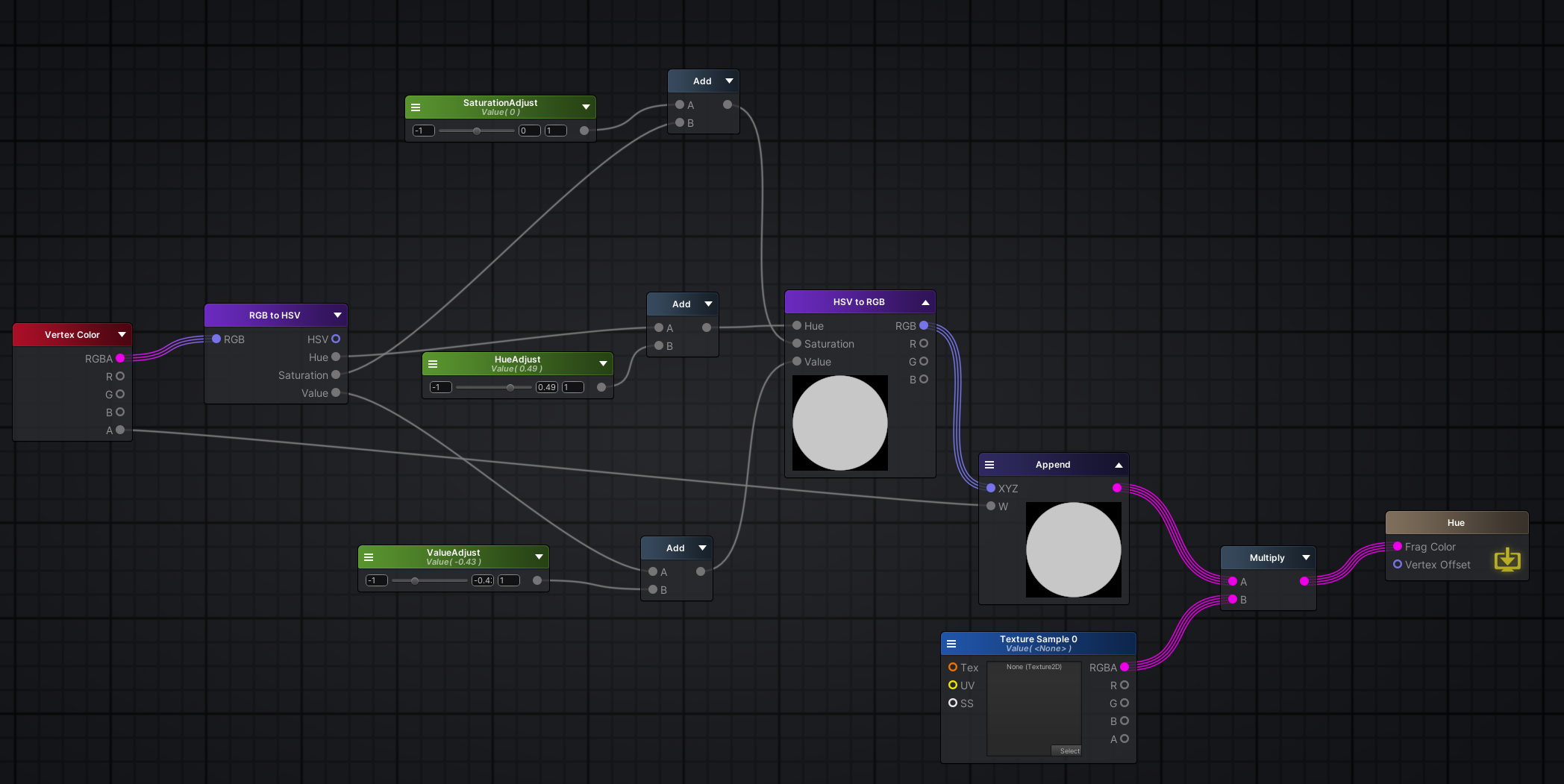

3. Hue(色相、明度、饱和度)

代码：

点此展开

// Made with Amplify Shader Editor v1.9.3.2
// Available at the Unity Asset Store - http://u3d.as/y3X
Shader "Shiki/Hue"
{
	Properties
	{
		_TextureSample0("Texture Sample 0", 2D) = "white" {}
		_HueAdjust("HueAdjust", Range( -1 , 1)) = 0
		_ValueAdjust("ValueAdjust", Range( -1 , 1)) = 0
		_SaturationAdjust("SaturationAdjust", Range( -1 , 1)) = 0
		[HideInInspector] _texcoord( "", 2D ) = "white" {}

	}

	SubShader
	{


		Tags { "RenderType"="Transparent" "Queue"="Transparent" }
	LOD 100

		CGINCLUDE
		#pragma target 3.0
		ENDCG
		Blend SrcAlpha OneMinusSrcAlpha
		AlphaToMask Off
		Cull Off
		ColorMask RGBA
		ZWrite Off
		ZTest LEqual
		Offset 0 , 0



		Pass
		{
			Name "Unlit"

			CGPROGRAM



			#ifndef UNITY_SETUP_STEREO_EYE_INDEX_POST_VERTEX
			//only defining to not throw compilation error over Unity 5.5
			#define UNITY_SETUP_STEREO_EYE_INDEX_POST_VERTEX(input)
			#endif
			#pragma vertex vert
			#pragma fragment frag
			#pragma multi_compile_instancing
			#include "UnityCG.cginc"


			struct appdata
			{
				float4 vertex : POSITION;
				float4 color : COLOR;
				float4 ase_texcoord : TEXCOORD0;
				UNITY_VERTEX_INPUT_INSTANCE_ID
			};

			struct v2f
			{
				float4 vertex : SV_POSITION;
				#ifdef ASE_NEEDS_FRAG_WORLD_POSITION
				float3 worldPos : TEXCOORD0;
				#endif
				float4 ase_color : COLOR;
				float4 ase_texcoord1 : TEXCOORD1;
				UNITY_VERTEX_INPUT_INSTANCE_ID
				UNITY_VERTEX_OUTPUT_STEREO
			};

			uniform sampler2D _TextureSample0;
			uniform float4 _TextureSample0_ST;
			uniform float _HueAdjust;
			uniform float _SaturationAdjust;
			uniform float _ValueAdjust;
			float3 HSVToRGB( float3 c )
			{
				float4 K = float4( 1.0, 2.0 / 3.0, 1.0 / 3.0, 3.0 );
				float3 p = abs( frac( c.xxx + K.xyz ) * 6.0 - K.www );
				return c.z * lerp( K.xxx, saturate( p - K.xxx ), c.y );
			}

			float3 RGBToHSV(float3 c)
			{
				float4 K = float4(0.0, -1.0 / 3.0, 2.0 / 3.0, -1.0);
				float4 p = lerp( float4( c.bg, K.wz ), float4( c.gb, K.xy ), step( c.b, c.g ) );
				float4 q = lerp( float4( p.xyw, c.r ), float4( c.r, p.yzx ), step( p.x, c.r ) );
				float d = q.x - min( q.w, q.y );
				float e = 1.0e-10;
				return float3( abs(q.z + (q.w - q.y) / (6.0 * d + e)), d / (q.x + e), q.x);
			}


			v2f vert ( appdata v )
			{
				v2f o;
				UNITY_SETUP_INSTANCE_ID(v);
				UNITY_INITIALIZE_VERTEX_OUTPUT_STEREO(o);
				UNITY_TRANSFER_INSTANCE_ID(v, o);

				o.ase_color = v.color;
				o.ase_texcoord1.xy = v.ase_texcoord.xy;

				//setting value to unused interpolator channels and avoid initialization warnings
				o.ase_texcoord1.zw = 0;
				float3 vertexValue = float3(0, 0, 0);
				#if ASE_ABSOLUTE_VERTEX_POS
				vertexValue = v.vertex.xyz;
				#endif
				vertexValue = vertexValue;
				#if ASE_ABSOLUTE_VERTEX_POS
				v.vertex.xyz = vertexValue;
				#else
				v.vertex.xyz += vertexValue;
				#endif
				o.vertex = UnityObjectToClipPos(v.vertex);

				#ifdef ASE_NEEDS_FRAG_WORLD_POSITION
				o.worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;
				#endif
				return o;
			}

			fixed4 frag (v2f i ) : SV_Target
			{
				UNITY_SETUP_INSTANCE_ID(i);
				UNITY_SETUP_STEREO_EYE_INDEX_POST_VERTEX(i);
				fixed4 finalColor;
				#ifdef ASE_NEEDS_FRAG_WORLD_POSITION
				float3 WorldPosition = i.worldPos;
				#endif
				float2 uv_TextureSample0 = i.ase_texcoord1.xy * _TextureSample0_ST.xy + _TextureSample0_ST.zw;
				float4 tex2DNode3 = tex2D( _TextureSample0, uv_TextureSample0 );
				float3 hsvTorgb1 = RGBToHSV( tex2DNode3.rgb );
				float3 hsvTorgb6 = HSVToRGB( float3(( hsvTorgb1.x + _HueAdjust ),( hsvTorgb1.y + _SaturationAdjust ),( hsvTorgb1.z + _ValueAdjust )) );
				float4 appendResult7 = (float4(hsvTorgb6 , saturate( tex2DNode3.a )));


				finalColor = ( i.ase_color * appendResult7 );
				return finalColor;
			}
			ENDCG
		}
	}
	CustomEditor "ASEMaterialInspector"

	Fallback Off
}
/*ASEBEGIN
Version=19302
Node;AmplifyShaderEditor.SamplerNode;3;-955.8383,-47.848;Inherit;True;Property;_TextureSample0;Texture Sample 0;0;0;Create;True;0;0;0;False;0;False;-1;032996e4459cca641a6d4d89f436a478;4cd9fe53ba4453f40bda7bec8a4bf018;True;0;False;white;Auto;False;Object;-1;Auto;Texture2D;8;0;SAMPLER2D;;False;1;FLOAT2;0,0;False;2;FLOAT;0;False;3;FLOAT2;0,0;False;4;FLOAT2;0,0;False;5;FLOAT;1;False;6;FLOAT;0;False;7;SAMPLERSTATE;;False;5;COLOR;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.RGBToHSVNode;1;-554.5,-3.5;Inherit;False;1;0;FLOAT3;0,0,0;False;4;FLOAT3;0;FLOAT;1;FLOAT;2;FLOAT;3
Node;AmplifyShaderEditor.RangedFloatNode;5;-541.3859,367.7798;Inherit;False;Property;_HueAdjust;HueAdjust;1;0;Create;True;0;0;0;False;0;False;0;0;-1;1;0;1;FLOAT;0
Node;AmplifyShaderEditor.RangedFloatNode;10;-277.3328,-27.22626;Inherit;False;Property;_ValueAdjust;ValueAdjust;2;0;Create;True;0;0;0;False;0;False;0;0;-1;1;0;1;FLOAT;0
Node;AmplifyShaderEditor.RangedFloatNode;13;-468.0592,-210.9917;Inherit;False;Property;_SaturationAdjust;SaturationAdjust;3;0;Create;True;0;0;0;False;0;False;0;0;-1;1;0;1;FLOAT;0
Node;AmplifyShaderEditor.SimpleAddOpNode;4;-204.4461,252.7277;Inherit;True;2;2;0;FLOAT;0;False;1;FLOAT;0;False;1;FLOAT;0
Node;AmplifyShaderEditor.SimpleAddOpNode;11;83.66724,-156.2263;Inherit;False;2;2;0;FLOAT;0;False;1;FLOAT;0;False;1;FLOAT;0
Node;AmplifyShaderEditor.SimpleAddOpNode;12;-107.0592,-339.9918;Inherit;False;2;2;0;FLOAT;0;False;1;FLOAT;0;False;1;FLOAT;0
Node;AmplifyShaderEditor.SaturateNode;9;139.7737,422.8393;Inherit;False;1;0;FLOAT;0;False;1;FLOAT;0
Node;AmplifyShaderEditor.HSVToRGBNode;6;140.1472,48.45157;Inherit;True;3;0;FLOAT;0;False;1;FLOAT;0;False;2;FLOAT;0;False;4;FLOAT3;0;FLOAT;1;FLOAT;2;FLOAT;3
Node;AmplifyShaderEditor.DynamicAppendNode;7;508.9308,168.5919;Inherit;True;FLOAT4;4;0;FLOAT3;0,0,0;False;1;FLOAT;0;False;2;FLOAT;0;False;3;FLOAT;0;False;1;FLOAT4;0
Node;AmplifyShaderEditor.VertexColorNode;14;515.7672,-41.53622;Inherit;False;0;5;COLOR;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.SimpleMultiplyOpNode;15;858.7672,96.46378;Inherit;False;2;2;0;COLOR;0,0,0,0;False;1;FLOAT4;0,0,0,0;False;1;COLOR;0
Node;AmplifyShaderEditor.TemplateMultiPassMasterNode;0;1064.739,70.52806;Float;False;True;-1;2;ASEMaterialInspector;100;5;BLK/Hue;0770190933193b94aaa3065e307002fa;True;Unlit;0;0;Unlit;2;True;True;2;5;False;;10;False;;0;1;False;;0;False;;True;0;False;;0;False;;False;False;False;False;False;False;False;False;False;True;0;False;;False;True;0;False;;False;True;True;True;True;True;0;False;;False;False;False;False;False;False;False;True;False;0;False;;255;False;;255;False;;0;False;;0;False;;0;False;;0;False;;0;False;;0;False;;0;False;;0;False;;True;True;2;False;;True;3;False;;True;True;0;False;;0;False;;True;2;RenderType=Transparent=RenderType;Queue=Transparent=Queue=0;True;2;False;0;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;0;;0;0;Standard;1;Vertex Position,InvertActionOnDeselection;1;0;0;1;True;False;;False;0
WireConnection;1;0;3;0
WireConnection;4;0;1;1
WireConnection;4;1;5;0
WireConnection;11;0;1;3
WireConnection;11;1;10;0
WireConnection;12;0;1;2
WireConnection;12;1;13;0
WireConnection;9;0;3;4
WireConnection;6;0;4;0
WireConnection;6;1;12;0
WireConnection;6;2;11;0
WireConnection;7;0;6;0
WireConnection;7;3;9;0
WireConnection;15;0;14;0
WireConnection;15;1;7;0
WireConnection;0;0;15;0
ASEEND*/
//CHKSM=145B3A63A2B3D44135596F1A09C5E497FDF101F8

4. UV流动

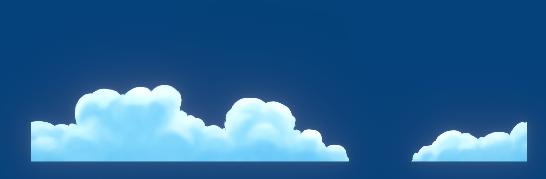

效果：

代码：

点此展开

Shader "Shiki/UVFlow"
{
    Properties
    {
        [hideInInspector]_MainTex ("Texture", 2D) = "white" {}
        _XSpeed ("XSpeed", Float) = 1
        _YSpeed ("YSpeed", Float) = 0
    }
    SubShader
    {
        Tags { "RenderType"="Transparent" "Queue"="Transparent"}
        Blend SrcAlpha OneMinusSrcAlpha

        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag

            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 vertex : SV_POSITION;
            };

            sampler2D _MainTex;
            float4 _MainTex_ST;
            fixed _XSpeed;
            fixed _YSpeed;

            v2f vert (appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
                v.uv += fixed2(_XSpeed * _Time.y, _YSpeed * _Time.y);
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);
                return o;
            }

            fixed4 frag (v2f i) : SV_Target
            {
                fixed4 col = tex2D(_MainTex, i.uv);
                return col;
            }
            ENDCG
        }
    }
}

5. 序列帧图片播放

参数：

代码：

点此展开

Shader "Shiki/Frame"
{
    Properties
    {
        _MainTex ("Texture", 2D) = "white" {}
        _Color ("Color", Color) = (1,1,1,1)
        _HorizontalAmount("Horizontal Amount", Float) = 4
        _VerticalAmount("Vertical Amount", Float) = 4
        _Speed ("Speed", Range(1, 50)) = 15
    }
    SubShader
    {
        Tags { "RenderType"="Transparent" "Queue"="Transparent" "IgnoreProjector"="True"}

        ZWrite Off
        Blend SrcAlpha OneMinusSrcAlpha
        Cull Off

        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag

            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
                float4 color : COLOR;
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                UNITY_FOG_COORDS(1)
                float4 vertex : SV_POSITION;
                float4 color : TEXCOORD1;
            };

            sampler2D _MainTex;
            float4 _MainTex_ST;
            fixed4 _Color;
            float _HorizontalAmount;
            float _VerticalAmount;
            float _Speed;

            v2f vert (appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);
                o.color = v.color;
                return o;
            }

            fixed4 frag (v2f i) : SV_Target
            {
                float time = floor(_Time.y * _Speed);
                float row = floor(time / _HorizontalAmount);
                float column = time - row * _HorizontalAmount;

                half2 uv = i.uv + half2(column, -row);
                uv.x /= _HorizontalAmount;
                uv.y /= _VerticalAmount;

                fixed4 col = tex2D(_MainTex, uv);
                col.rgb *= _Color;
                return col * i.color;
            }
            ENDCG
        }
    }
}

6. 扫描光效果

效果：

贴图资源：

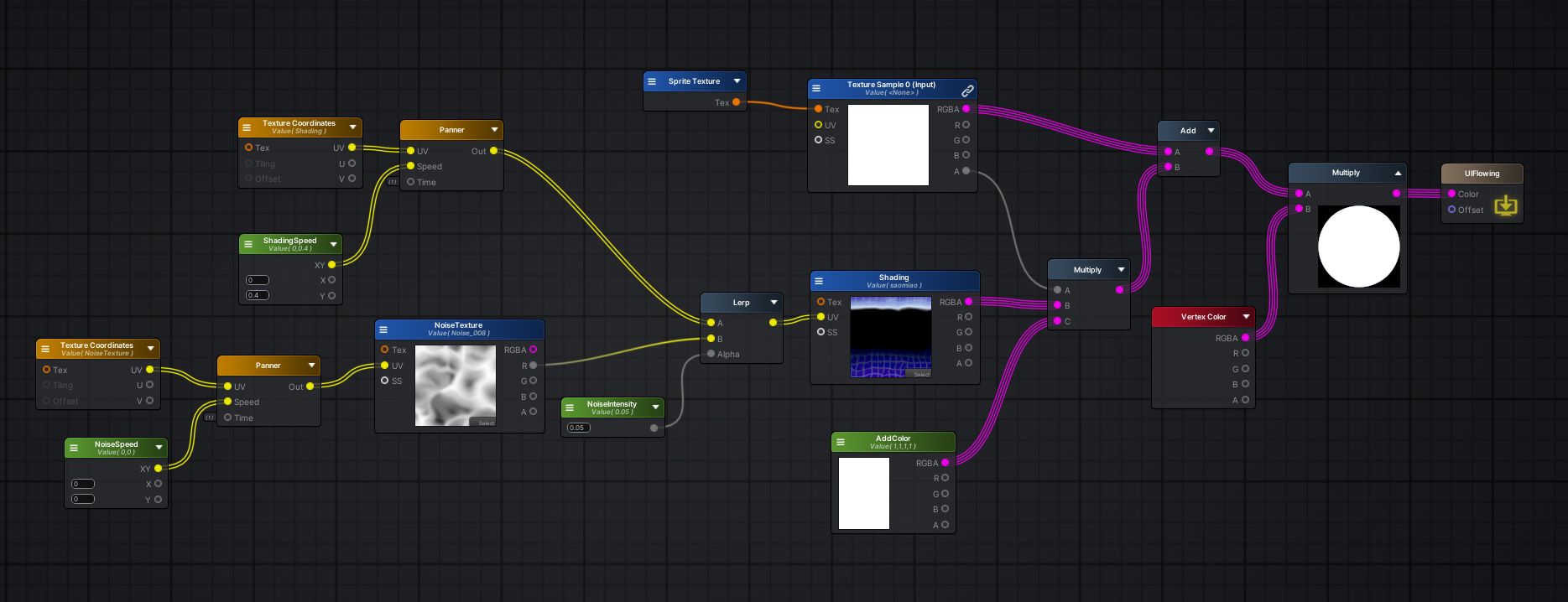

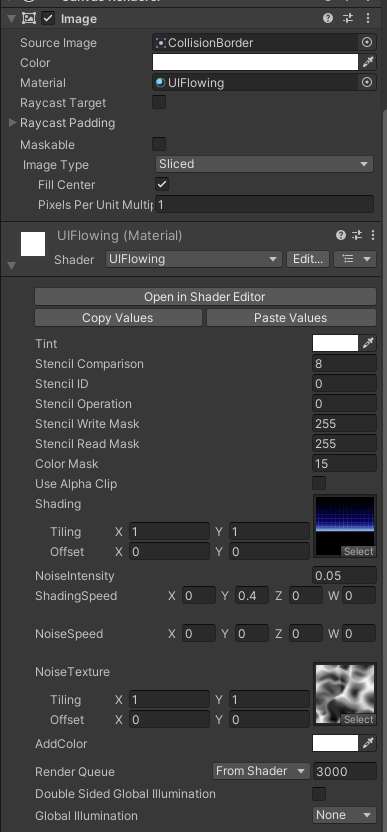

参数：

代码：

点此展开

// Made with Amplify Shader Editor v1.9.3.2
// Available at the Unity Asset Store - http://u3d.as/y3X
Shader "Shiki/UIFlowing"
{
    Properties
    {
        [PerRendererData] _MainTex ("Sprite Texture", 2D) = "white" {}
        _Color ("Tint", Color) = (1,1,1,1)

        _StencilComp ("Stencil Comparison", Float) = 8
        _Stencil ("Stencil ID", Float) = 0
        _StencilOp ("Stencil Operation", Float) = 0
        _StencilWriteMask ("Stencil Write Mask", Float) = 255
        _StencilReadMask ("Stencil Read Mask", Float) = 255

        _ColorMask ("Color Mask", Float) = 15

        [Toggle(UNITY_UI_ALPHACLIP)] _UseUIAlphaClip ("Use Alpha Clip", Float) = 0

        _Shading("Shading", 2D) = "black" {}
        _NoiseIntensity("NoiseIntensity", Float) = 0.05
        _ShadingSpeed("ShadingSpeed", Vector) = (0,0.4,0,0)
        _NoiseSpeed("NoiseSpeed", Vector) = (0,0,0,0)
        _NoiseTexture("NoiseTexture", 2D) = "white" {}
        _AddColor("AddColor", Color) = (1,1,1,1)
        [HideInInspector] _texcoord( "", 2D ) = "white" {}

    }

    SubShader
    {
		LOD 0

        Tags { "Queue"="Transparent" "IgnoreProjector"="True" "RenderType"="Transparent" "PreviewType"="Plane" "CanUseSpriteAtlas"="True" }

        Stencil
        {
        	Ref [_Stencil]
        	ReadMask [_StencilReadMask]
        	WriteMask [_StencilWriteMask]
        	Comp [_StencilComp]
        	Pass [_StencilOp]
        }


        Cull Off
        Lighting Off
        ZWrite Off
        ZTest [unity_GUIZTestMode]
        Blend One OneMinusSrcAlpha
        ColorMask [_ColorMask]


        Pass
        {
            Name "Default"
        CGPROGRAM

            #pragma vertex vert
            #pragma fragment frag
            #pragma target 3.0

            #include "UnityCG.cginc"
            #include "UnityUI.cginc"

            #pragma multi_compile_local _ UNITY_UI_CLIP_RECT
            #pragma multi_compile_local _ UNITY_UI_ALPHACLIP

            #include "UnityShaderVariables.cginc"
            #define ASE_NEEDS_FRAG_COLOR


            struct appdata_t
            {
                float4 vertex   : POSITION;
                float4 color    : COLOR;
                float2 texcoord : TEXCOORD0;
                UNITY_VERTEX_INPUT_INSTANCE_ID

            };

            struct v2f
            {
                float4 vertex   : SV_POSITION;
                fixed4 color    : COLOR;
                float2 texcoord  : TEXCOORD0;
                float4 worldPosition : TEXCOORD1;
                float4  mask : TEXCOORD2;
                UNITY_VERTEX_OUTPUT_STEREO

            };

            sampler2D _MainTex;
            fixed4 _Color;
            fixed4 _TextureSampleAdd;
            float4 _ClipRect;
            float4 _MainTex_ST;
            float _UIMaskSoftnessX;
            float _UIMaskSoftnessY;

            uniform sampler2D _Shading;
            uniform float2 _ShadingSpeed;
            uniform float4 _Shading_ST;
            uniform sampler2D _NoiseTexture;
            uniform float2 _NoiseSpeed;
            uniform float4 _NoiseTexture_ST;
            uniform float _NoiseIntensity;
            uniform float4 _AddColor;


            v2f vert(appdata_t v )
            {
                v2f OUT;
                UNITY_SETUP_INSTANCE_ID(v);
                UNITY_INITIALIZE_VERTEX_OUTPUT_STEREO(OUT);



                v.vertex.xyz +=  float3( 0, 0, 0 ) ;

                float4 vPosition = UnityObjectToClipPos(v.vertex);
                OUT.worldPosition = v.vertex;
                OUT.vertex = vPosition;

                float2 pixelSize = vPosition.w;
                pixelSize /= float2(1, 1) * abs(mul((float2x2)UNITY_MATRIX_P, _ScreenParams.xy));

                float4 clampedRect = clamp(_ClipRect, -2e10, 2e10);
                float2 maskUV = (v.vertex.xy - clampedRect.xy) / (clampedRect.zw - clampedRect.xy);
                OUT.texcoord = v.texcoord;
                OUT.mask = float4(v.vertex.xy * 2 - clampedRect.xy - clampedRect.zw, 0.25 / (0.25 * half2(_UIMaskSoftnessX, _UIMaskSoftnessY) + abs(pixelSize.xy)));

                OUT.color = v.color * _Color;
                return OUT;
            }

            fixed4 frag(v2f IN ) : SV_Target
            {
                //Round up the alpha color coming from the interpolator (to 1.0/256.0 steps)
                //The incoming alpha could have numerical instability, which makes it very sensible to
                //HDR color transparency blend, when it blends with the world's texture.
                const half alphaPrecision = half(0xff);
                const half invAlphaPrecision = half(1.0/alphaPrecision);
                IN.color.a = round(IN.color.a * alphaPrecision)*invAlphaPrecision;

                float2 uv_MainTex = IN.texcoord.xy * _MainTex_ST.xy + _MainTex_ST.zw;
                float4 tex2DNode2 = tex2D( _MainTex, uv_MainTex );
                float2 uv_Shading = IN.texcoord.xy * _Shading_ST.xy + _Shading_ST.zw;
                float2 panner6 = ( 1.0 * _Time.y * _ShadingSpeed + uv_Shading);
                float2 uv_NoiseTexture = IN.texcoord.xy * _NoiseTexture_ST.xy + _NoiseTexture_ST.zw;
                float2 panner12 = ( 1.0 * _Time.y * _NoiseSpeed + uv_NoiseTexture);
                float2 temp_cast_0 = (tex2D( _NoiseTexture, panner12 ).r).xx;
                float2 lerpResult8 = lerp( panner6 , temp_cast_0 , _NoiseIntensity);


                half4 color = ( ( tex2DNode2 + ( tex2DNode2.a * tex2D( _Shading, lerpResult8 ) * _AddColor ) ) * IN.color );

                #ifdef UNITY_UI_CLIP_RECT
                half2 m = saturate((_ClipRect.zw - _ClipRect.xy - abs(IN.mask.xy)) * IN.mask.zw);
                color.a *= m.x * m.y;
                #endif

                #ifdef UNITY_UI_ALPHACLIP
                clip (color.a - 0.001);
                #endif

                color.rgb *= color.a;

                return color;
            }
        ENDCG
        }
    }
    CustomEditor "ASEMaterialInspector"

	Fallback Off
}
/*ASEBEGIN
Version=19302
Node;AmplifyShaderEditor.TextureCoordinatesNode;11;-1390.019,330.9562;Inherit;False;0;10;2;3;2;SAMPLER2D;;False;0;FLOAT2;1,1;False;1;FLOAT2;0,0;False;5;FLOAT2;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.Vector2Node;13;-1345.274,484.4648;Inherit;False;Property;_NoiseSpeed;NoiseSpeed;3;0;Create;True;0;0;0;False;0;False;0,0;0,0;0;3;FLOAT2;0;FLOAT;1;FLOAT;2
Node;AmplifyShaderEditor.TextureCoordinatesNode;5;-1076.803,-12.40173;Inherit;False;0;4;2;3;2;SAMPLER2D;;False;0;FLOAT2;1,1;False;1;FLOAT2;0,0;False;5;FLOAT2;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.Vector2Node;7;-1075.481,168.8995;Inherit;False;Property;_ShadingSpeed;ShadingSpeed;2;0;Create;True;0;0;0;False;0;False;0,0.4;0,0;0;3;FLOAT2;0;FLOAT;1;FLOAT;2
Node;AmplifyShaderEditor.PannerNode;12;-1109.019,356.9562;Inherit;False;3;0;FLOAT2;0,0;False;2;FLOAT2;0,0;False;1;FLOAT;1;False;1;FLOAT2;0
Node;AmplifyShaderEditor.PannerNode;6;-825.2067,-8.06372;Inherit;False;3;0;FLOAT2;0,0;False;2;FLOAT2;0,0;False;1;FLOAT;1;False;1;FLOAT2;0
Node;AmplifyShaderEditor.RangedFloatNode;9;-576.4412,422.2407;Inherit;False;Property;_NoiseIntensity;NoiseIntensity;1;0;Create;True;0;0;0;False;0;False;0.05;0;0;0;0;1;FLOAT;0
Node;AmplifyShaderEditor.SamplerNode;10;-865.2081,300.8365;Inherit;True;Property;_NoiseTexture;NoiseTexture;4;0;Create;True;0;0;0;False;0;False;-1;c660f805ba7589c48990705a226d17af;c660f805ba7589c48990705a226d17af;True;0;False;white;Auto;False;Object;-1;Auto;Texture2D;8;0;SAMPLER2D;;False;1;FLOAT2;0,0;False;2;FLOAT;0;False;3;FLOAT2;0,0;False;4;FLOAT2;0,0;False;5;FLOAT;1;False;6;FLOAT;0;False;7;SAMPLERSTATE;;False;5;COLOR;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.TemplateShaderPropertyNode;1;-448.5,-169;Inherit;False;0;0;_MainTex;Shader;False;0;5;SAMPLER2D;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.LerpOp;8;-364.1982,221.579;Inherit;False;3;0;FLOAT2;0,0;False;1;FLOAT2;0,0;False;2;FLOAT;0;False;1;FLOAT2;0
Node;AmplifyShaderEditor.SamplerNode;2;-165.5,-113;Inherit;True;Property;_TextureSample0;Texture Sample 0;0;0;Create;True;0;0;0;False;0;False;-1;None;None;True;0;False;white;Auto;False;Object;-1;Auto;Texture2D;8;0;SAMPLER2D;;False;1;FLOAT2;0,0;False;2;FLOAT;0;False;3;FLOAT2;0,0;False;4;FLOAT2;0,0;False;5;FLOAT;1;False;6;FLOAT;0;False;7;SAMPLERSTATE;;False;5;COLOR;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.SamplerNode;4;-161.5972,185.3049;Inherit;True;Property;_Shading;Shading;0;0;Create;True;0;0;0;False;0;False;-1;86d08dcc6de11b54c95c02ecb85e1c1d;86d08dcc6de11b54c95c02ecb85e1c1d;True;0;False;black;Auto;False;Object;-1;Auto;Texture2D;8;0;SAMPLER2D;;False;1;FLOAT2;0,0;False;2;FLOAT;0;False;3;FLOAT2;0,0;False;4;FLOAT2;0,0;False;5;FLOAT;1;False;6;FLOAT;0;False;7;SAMPLERSTATE;;False;5;COLOR;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.ColorNode;15;-33.11536,459.3895;Inherit;False;Property;_AddColor;AddColor;5;0;Create;True;0;0;0;False;0;False;1,1,1,1;1,1,1,1;True;0;5;COLOR;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.SimpleMultiplyOpNode;14;349.8846,304.3895;Inherit;False;3;3;0;FLOAT;0;False;1;COLOR;0,0,0,0;False;2;COLOR;0,0,0,0;False;1;COLOR;0
Node;AmplifyShaderEditor.SimpleAddOpNode;3;501.9733,89.53397;Inherit;False;2;2;0;COLOR;0,0,0,0;False;1;COLOR;0,0,0,0;False;1;COLOR;0
Node;AmplifyShaderEditor.VertexColorNode;17;563.8846,267.3895;Inherit;False;0;5;COLOR;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.SimpleMultiplyOpNode;16;778.8846,99.38953;Inherit;True;2;2;0;COLOR;0,0,0,0;False;1;COLOR;0,0,0,0;False;1;COLOR;0
Node;AmplifyShaderEditor.TemplateMultiPassMasterNode;0;988,86;Float;False;True;-1;2;ASEMaterialInspector;0;3;UIFlowing;5056123faa0c79b47ab6ad7e8bf059a4;True;Default;0;0;Default;2;False;True;3;1;False;;10;False;;0;1;False;;0;False;;False;False;False;False;False;False;False;False;False;False;False;False;True;2;False;;False;True;True;True;True;True;0;True;_ColorMask;False;False;False;False;False;False;False;True;True;0;True;_Stencil;255;True;_StencilReadMask;255;True;_StencilWriteMask;0;True;_StencilComp;0;True;_StencilOp;0;False;;0;False;;0;False;;0;False;;0;False;;0;False;;False;True;2;False;;True;0;True;unity_GUIZTestMode;False;True;5;Queue=Transparent=Queue=0;IgnoreProjector=True;RenderType=Transparent=RenderType;PreviewType=Plane;CanUseSpriteAtlas=True;False;False;0;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;True;2;False;0;;0;0;Standard;0;0;1;True;False;;False;0
WireConnection;12;0;11;0
WireConnection;12;2;13;0
WireConnection;6;0;5;0
WireConnection;6;2;7;0
WireConnection;10;1;12;0
WireConnection;8;0;6;0
WireConnection;8;1;10;1
WireConnection;8;2;9;0
WireConnection;2;0;1;0
WireConnection;4;1;8;0
WireConnection;14;0;2;4
WireConnection;14;1;4;0
WireConnection;14;2;15;0
WireConnection;3;0;2;0
WireConnection;3;1;14;0
WireConnection;16;0;3;0
WireConnection;16;1;17;0
WireConnection;0;0;16;0
ASEEND*/
//CHKSM=7B43AC024608F17057A69F37671FF10FA2C14CB3

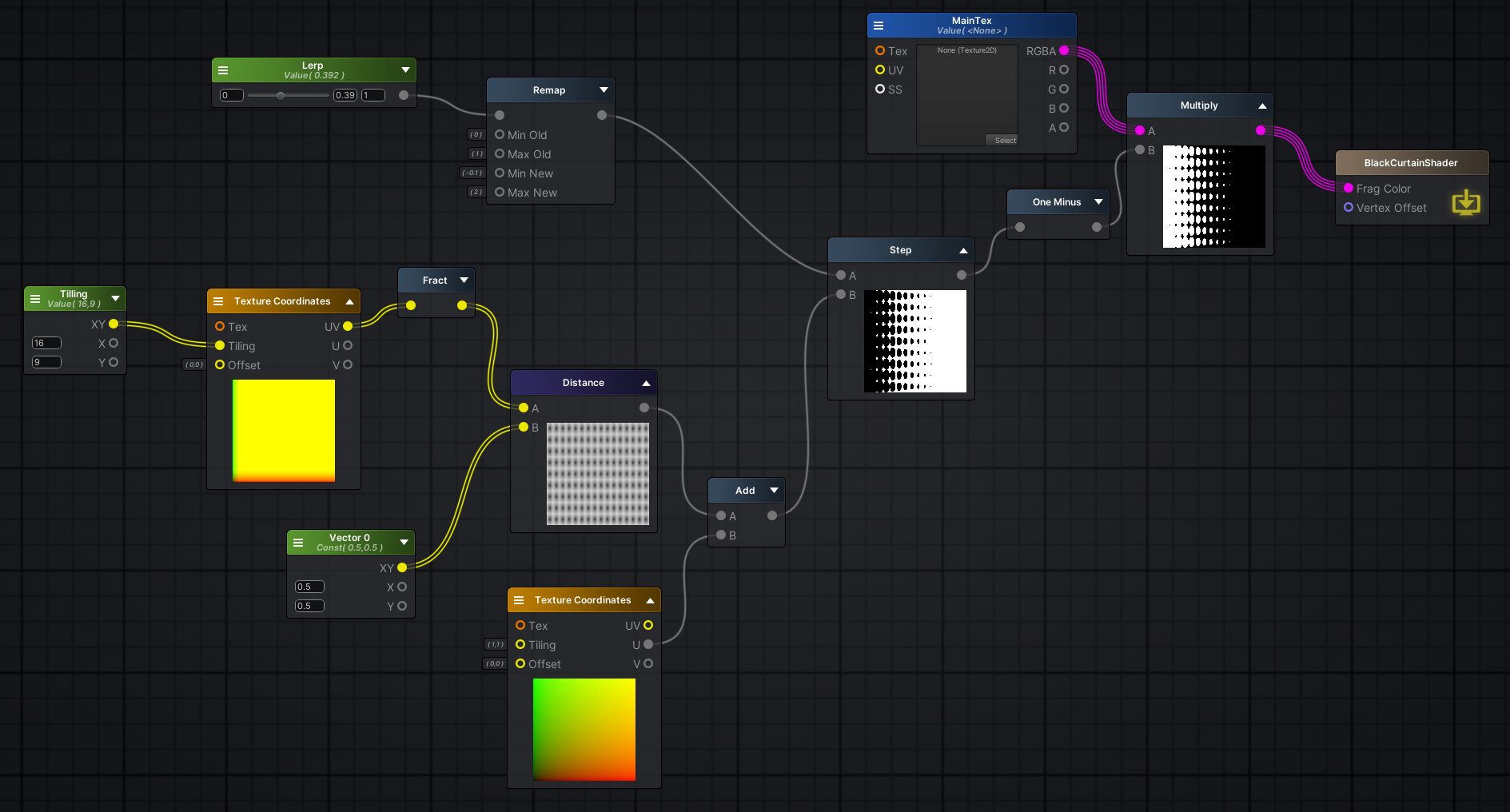

7. 过场黑幕

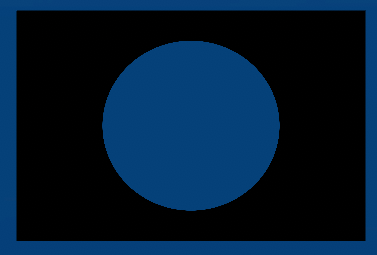

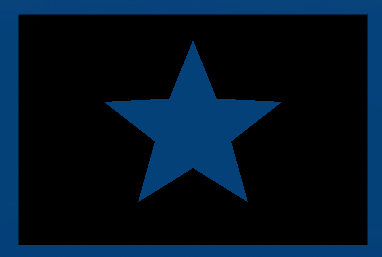

效果：

代码：

点此展开

Shader "Shiki/BlackCurtainSDFShader"
{
    Properties
    {
        [hideInInspector] _MainTex ("Texture", 2D) = "white" {}
        [hideInInspector] _CircleScaleOffset ("CircleScaleOffset", Float) = 1 // Width / Height
        [hideInInspector]_Radius ("Radius", Float) = 15
        [hideInInspector]_RadiusThickness ("RadiusThickness", Float) = 10
        _Lerp ("Lerp", Range(0, 1)) = 1
    }
    SubShader
    {
        Tags { "RenderType"="Transparent" "Queue"="Transparent"}
        Blend SrcAlpha OneMinusSrcAlpha

        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag

            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 vertex : SV_POSITION;
            };

            sampler2D _MainTex;
            float4 _MainTex_ST;
            float _CircleScaleOffset;
            float _Radius;
            float _RadiusThickness;
            float _Lerp;

            v2f vert (appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);
                return o;
            }

            float sdCircle(float2 p, float r)
            {
                return length(p) - r;
            }
            float opAnnular(float sdf, float r)
            {
                return abs(sdf) - r;
            }

            fixed4 frag (v2f i) : SV_Target
            {
                fixed4 shape = tex2D(_MainTex, i.uv);
                // 全象限
                i.uv.y = 1.0 - i.uv.y;
                i.uv = i.uv * 2 - 1;
                // 消除屏幕拉伸影响
                float w = _ScreenParams.x;
                float h = _ScreenParams.y;
                half co = w/h; // * _CircleScaleOffset;
                i.uv = float2(i.uv.x * co, i.uv.y);

                float step = 1.0 / w;
                float Radius = 13 - _Lerp * 3;
                fixed4 circle = smoothstep(step, -step, opAnnular(sdCircle(i.uv, Radius) , _RadiusThickness));
                fixed4 col = fixed4(circle.rgb, shape.a);
                col.a *= col.r;
                col.rgb = fixed3(0,0,0);

                return col;
            }
            ENDCG
        }
    }
}

效果：

代码：

点此展开

Shader "Shiki/BlackCurtainSDFShader_star5"
{
    Properties
    {
        [hideInInspector] _MainTex ("Texture", 2D) = "white" {}
        [hideInInspector] _CircleScaleOffset ("CircleScaleOffset", Float) = 1 // Width / Height
        [hideInInspector] _Radius ("Radius", Float) = 0.03
        _Lerp ("Lerp", Range(0, 1)) = 1
        _Shape ("Shape", Range(0.1, 10)) = 2.5
    }
    SubShader
    {
        Tags {"RenderType"="Transparent" "Queue"="Transparent"}
        Blend SrcAlpha OneMinusSrcAlpha

        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag

            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 vertex : SV_POSITION;
            };

            sampler2D _MainTex;
            float4 _MainTex_ST;
            float _CircleScaleOffset;
            float _Radius;
            float _Lerp;
            float _Shape;

            v2f vert (appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);
                return o;
            }

           float sdStar5(in float2 p, in float r, in float rf)
           {
               const float2 k1 = float2(0.809016994375, -0.587785252292);
               const float2 k2 = float2(-k1.x,k1.y);
               p.x = abs(p.x);
               p -= 2.0*max(dot(k1,p),0.0)*k1;
               p -= 2.0*max(dot(k2,p),0.0)*k2;
               p.x = abs(p.x);
               p.y -= r;
               float2 ba = rf*float2(-k1.y,k1.x) - float2(0,1);
               float hh = clamp( dot(p,ba)/dot(ba,ba), 0.0, r );
               float h = _ScreenParams.y;
               return length(p-ba*h) * sign(p.y*ba.x-p.x*ba.y);
           }

            float opAnnular(float sdf, float r)
            {
                return abs(sdf) - r;
            }

            fixed4 frag (v2f i) : SV_Target
            {
                // 全象限
                i.uv.y = 1.0 - i.uv.y;
                i.uv = i.uv * 2 - 1;
                // 消除屏幕拉伸影响
                float w = _ScreenParams.x;
                float h = _ScreenParams.y;
                half co = w/h; // * _CircleScaleOffset;
                i.uv = float2(i.uv.x * co, i.uv.y);

                float step = 1.0 / w;
                float Radius = 2.2 - 2.2 * _Lerp;
                fixed4 star5 = smoothstep(step, -step, sdStar5(i.uv, Radius,_Shape));
                star5.a = 1 - star5.a;
                return star5;
            }
            ENDCG
        }
    }
}

效果：

代码：

点此展开

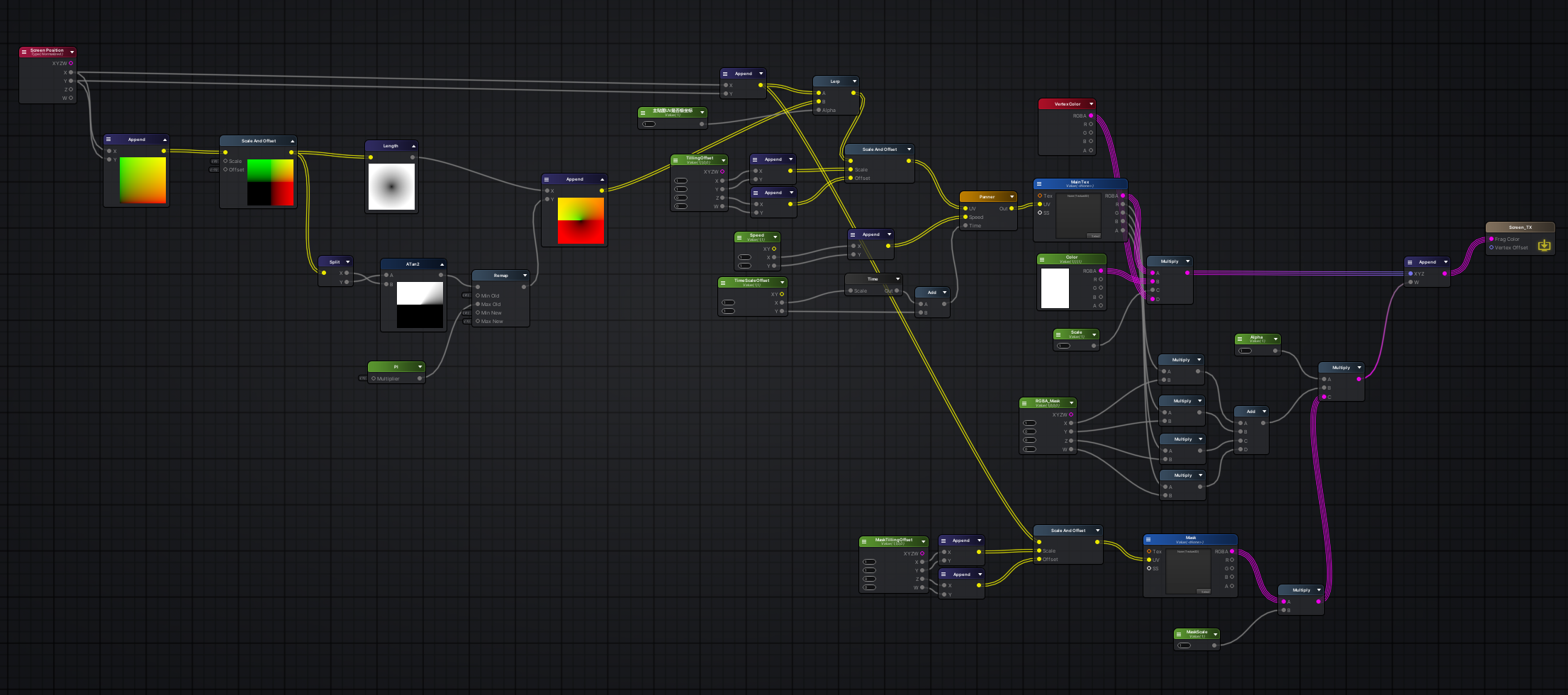

// Made with Amplify Shader Editor v1.9.3.2
// Available at the Unity Asset Store - http://u3d.as/y3X
Shader "Shiki/BlackCurtainShader"
{
	Properties
	{
		_Lerp("Lerp", Range( 0 , 1)) = 0.6623793
		_Tilling("Tilling", Vector) = (16,9,0,0)
		_MainTex("MainTex", 2D) = "white" {}
		[HideInInspector] _texcoord( "", 2D ) = "white" {}

	}

	SubShader
	{


		Tags { "RenderType"="Transparent" "Queue"="Transparent" }
	LOD 100

		CGINCLUDE
		#pragma target 3.0
		ENDCG
		Blend SrcAlpha OneMinusSrcAlpha, SrcAlpha OneMinusSrcAlpha
		AlphaToMask Off
		Cull Back
		ColorMask RGBA
		ZWrite Off
		ZTest LEqual
		Offset 0 , 0



		Pass
		{
			Name "Unlit"

			CGPROGRAM



			#ifndef UNITY_SETUP_STEREO_EYE_INDEX_POST_VERTEX
			//only defining to not throw compilation error over Unity 5.5
			#define UNITY_SETUP_STEREO_EYE_INDEX_POST_VERTEX(input)
			#endif
			#pragma vertex vert
			#pragma fragment frag
			#pragma multi_compile_instancing
			#include "UnityCG.cginc"


			struct appdata
			{
				float4 vertex : POSITION;
				float4 color : COLOR;
				float4 ase_texcoord : TEXCOORD0;
				UNITY_VERTEX_INPUT_INSTANCE_ID
			};

			struct v2f
			{
				float4 vertex : SV_POSITION;
				#ifdef ASE_NEEDS_FRAG_WORLD_POSITION
				float3 worldPos : TEXCOORD0;
				#endif
				float4 ase_texcoord1 : TEXCOORD1;
				UNITY_VERTEX_INPUT_INSTANCE_ID
				UNITY_VERTEX_OUTPUT_STEREO
			};

			uniform sampler2D _MainTex;
			uniform float4 _MainTex_ST;
			uniform float _Lerp;
			uniform float2 _Tilling;


			v2f vert ( appdata v )
			{
				v2f o;
				UNITY_SETUP_INSTANCE_ID(v);
				UNITY_INITIALIZE_VERTEX_OUTPUT_STEREO(o);
				UNITY_TRANSFER_INSTANCE_ID(v, o);

				o.ase_texcoord1.xy = v.ase_texcoord.xy;

				//setting value to unused interpolator channels and avoid initialization warnings
				o.ase_texcoord1.zw = 0;
				float3 vertexValue = float3(0, 0, 0);
				#if ASE_ABSOLUTE_VERTEX_POS
				vertexValue = v.vertex.xyz;
				#endif
				vertexValue = vertexValue;
				#if ASE_ABSOLUTE_VERTEX_POS
				v.vertex.xyz = vertexValue;
				#else
				v.vertex.xyz += vertexValue;
				#endif
				o.vertex = UnityObjectToClipPos(v.vertex);

				#ifdef ASE_NEEDS_FRAG_WORLD_POSITION
				o.worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;
				#endif
				return o;
			}

			fixed4 frag (v2f i ) : SV_Target
			{
				UNITY_SETUP_INSTANCE_ID(i);
				UNITY_SETUP_STEREO_EYE_INDEX_POST_VERTEX(i);
				fixed4 finalColor;
				#ifdef ASE_NEEDS_FRAG_WORLD_POSITION
				float3 WorldPosition = i.worldPos;
				#endif
				float2 uv_MainTex = i.ase_texcoord1.xy * _MainTex_ST.xy + _MainTex_ST.zw;
				float2 texCoord3 = i.ase_texcoord1.xy * _Tilling + float2( 0,0 );
				float2 texCoord23 = i.ase_texcoord1.xy * float2( 1,1 ) + float2( 0,0 );


				finalColor = ( tex2D( _MainTex, uv_MainTex ) * ( 1.0 - step( (-0.1 + (_Lerp - 0.0) * (2.0 - -0.1) / (1.0 - 0.0)) , ( distance( frac( texCoord3 ) , float2( 0.5,0.5 ) ) + texCoord23.x ) ) ) );
				return finalColor;
			}
			ENDCG
		}
	}
	CustomEditor "ASEMaterialInspector"

	Fallback Off
}
/*ASEBEGIN
Version=19302
Node;AmplifyShaderEditor.Vector2Node;7;-892.8181,27.85309;Inherit;False;Property;_Tilling;Tilling;1;0;Create;True;0;0;0;False;0;False;16,9;16,9;0;3;FLOAT2;0;FLOAT;1;FLOAT;2
Node;AmplifyShaderEditor.TextureCoordinatesNode;3;-664.7827,30.79254;Inherit;True;0;-1;2;3;2;SAMPLER2D;;False;0;FLOAT2;1,1;False;1;FLOAT2;0,0;False;5;FLOAT2;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.Vector2Node;2;-564.7827,332.7925;Inherit;False;Constant;_Vector0;Vector 0;0;0;Create;True;0;0;0;False;0;False;0.5,0.5;0,0;0;3;FLOAT2;0;FLOAT;1;FLOAT;2
Node;AmplifyShaderEditor.FractNode;8;-425.2271,4.836273;Inherit;False;1;0;FLOAT2;0,0;False;1;FLOAT2;0
Node;AmplifyShaderEditor.DistanceOpNode;1;-284.5,133;Inherit;True;2;0;FLOAT2;0,0;False;1;FLOAT2;0,0;False;1;FLOAT;0
Node;AmplifyShaderEditor.TextureCoordinatesNode;23;-288.7357,405.5515;Inherit;True;0;-1;2;3;2;SAMPLER2D;;False;0;FLOAT2;1,1;False;1;FLOAT2;0,0;False;5;FLOAT2;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.RangedFloatNode;5;-658.142,-257.6541;Inherit;False;Property;_Lerp;Lerp;0;0;Create;True;0;0;0;False;0;False;0.6623793;0.934;0;1;0;1;FLOAT;0
Node;AmplifyShaderEditor.TFHCRemapNode;17;-314.2464,-232.8476;Inherit;False;5;0;FLOAT;0;False;1;FLOAT;0;False;2;FLOAT;1;False;3;FLOAT;-0.1;False;4;FLOAT;2;False;1;FLOAT;0
Node;AmplifyShaderEditor.SimpleAddOpNode;10;-36.84021,268.4261;Inherit;False;2;2;0;FLOAT;0;False;1;FLOAT;0;False;1;FLOAT;0
Node;AmplifyShaderEditor.StepOpNode;4;112.4658,-32.47552;Inherit;True;2;0;FLOAT;0;False;1;FLOAT;0;False;1;FLOAT;0
Node;AmplifyShaderEditor.SamplerNode;24;161.2841,-314.2552;Inherit;True;Property;_MainTex;MainTex;2;0;Create;True;0;0;0;False;0;False;-1;None;d4d6919451fe3e24388816386a6d15a4;True;0;False;white;Auto;False;Object;-1;Auto;Texture2D;8;0;SAMPLER2D;;False;1;FLOAT2;0,0;False;2;FLOAT;0;False;3;FLOAT2;0,0;False;4;FLOAT2;0,0;False;5;FLOAT;1;False;6;FLOAT;0;False;7;SAMPLERSTATE;;False;5;COLOR;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.OneMinusNode;26;337.0888,-93.09485;Inherit;False;1;0;FLOAT;0;False;1;FLOAT;0
Node;AmplifyShaderEditor.SimpleMultiplyOpNode;25;486.285,-214.155;Inherit;True;2;2;0;COLOR;0,0,0,0;False;1;FLOAT;0;False;1;COLOR;0
Node;AmplifyShaderEditor.TemplateMultiPassMasterNode;0;747.9399,-142.1815;Float;False;True;-1;2;ASEMaterialInspector;100;5;BlackCurtainShader;0770190933193b94aaa3065e307002fa;True;Unlit;0;0;Unlit;2;True;True;2;5;False;;10;False;;2;5;False;;10;False;;True;0;False;;0;False;;False;False;False;False;False;False;False;False;False;True;0;False;;True;True;0;False;;False;True;True;True;True;True;0;False;;False;False;False;False;False;False;False;True;False;0;False;;255;False;;255;False;;0;False;;0;False;;0;False;;0;False;;0;False;;0;False;;0;False;;0;False;;True;True;2;False;;True;3;False;;True;True;0;False;;0;False;;True;2;RenderType=Transparent=RenderType;Queue=Transparent=Queue=0;True;2;False;0;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;0;;0;0;Standard;1;Vertex Position,InvertActionOnDeselection;1;0;0;1;True;False;;False;0
WireConnection;3;0;7;0
WireConnection;8;0;3;0
WireConnection;1;0;8;0
WireConnection;1;1;2;0
WireConnection;17;0;5;0
WireConnection;10;0;1;0
WireConnection;10;1;23;1
WireConnection;4;0;17;0
WireConnection;4;1;10;0
WireConnection;26;0;4;0
WireConnection;25;0;24;0
WireConnection;25;1;26;0
WireConnection;0;0;25;0
ASEEND*/
//CHKSM=E111E8EC234E9132281E3E85AA670F2BF86D2673

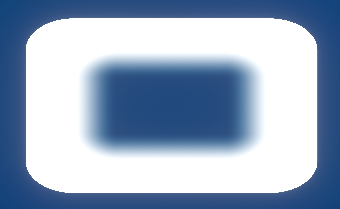

8. 梦境效果

效果：

代码：

点此展开

Shader "Shiki/Dream"
{
    Properties
    {
        _MainTex ("Texture", 2D) = "white" {}
        _Radius ("Radius", Range(0, 1.2)) = 0.21
        _w ("w", Range(0, 1)) = 0.578
        _h ("h", Range(0, 1)) = 0.541
        _fadeWidth ("fadeWidth", Range(0.001, 4)) = 0.08
        _outterWidth ("outterWidth", Range(0, 5)) = 1.84
    }
    SubShader
    {
        Tags { "RenderType"="Transparent" "Queue"="Transparent"}
        Blend SrcAlpha OneMinusSrcAlpha

        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag

            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
                float4 color : COLOR;
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 vertex : SV_POSITION;
                float4 color : COLOR;
            };

            sampler2D _MainTex;
            float4 _MainTex_ST;
            float _Radius;
            float _w;
            float _h;
            float _fadeWidth;
            float _outterWidth;

            float sdRect(float2 p, float2 b)
            {
                float2 d = abs(p) - b;
                return min(max(d.x, d.y), 0.0) + length(max(d, 0.0));
            }

            float opRound(float sdf, float r)
            {
                return sdf - r;
            }

            v2f vert (appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);
                o.color = v.color;
                return o;
            }

            fixed4 frag (v2f i) : SV_Target
            {
                i.uv = i.uv * 2 + (-1);
                float w = _ScreenParams.x;
                float step = 1 / w;
                float sdfDis = opRound(sdRect(i.uv, float2(_w, _h)), _Radius);
                float sdfDisOut = opRound(sdRect(i.uv, float2(_w+_outterWidth, _h+_outterWidth)), _Radius);
                float rect = smoothstep(step, -step,sdfDis);
                fixed4 col = fixed4(1, 1, 1, rect);
                col.a *= smoothstep( -_fadeWidth, -step, sdfDis);
                col += smoothstep(step, -step,sdfDisOut) - fixed4(1, 1, 1, rect);
                return col * i.color;
            }
            ENDCG
        }
    }
}

拓展：
- 可调参数：圆角度、宽、高、内扩外扩程度
- 一般用于模拟回忆、故事滤镜

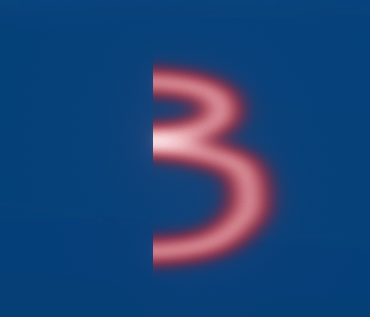

9. 按轴向显示效果

效果：

代码：

点此展开

Shader "Shiki/ScanVertical"
{
    Properties
    {
        _MainTex ("Texture", 2D) = "white" {}
        _Lerp ("Lerp", Range(0,1)) = 1
        _Direction ("Direction", Range(0, 1)) = 0
        _Alpha ("Alpha", Range(0,1)) = 1
        _Range ("Range", Range(0,1)) = 0.2
        _OneMinus ("OneMinus", Range(0, 1)) = 0
        _AlphaTotal ("AlphaTotal", Range(0, 1)) = 1
    }
    SubShader
    {
        Tags { "RenderType"="Transparent" "Queue"="Transparent" }
        Blend SrcAlpha OneMinusSrcAlpha

        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag

            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
                float4 color : COLOR;
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 vertex : SV_POSITION;
                float4 color : COLOR;
            };

            sampler2D _MainTex;
            float4 _MainTex_ST;
            float _Lerp;
            float _Alpha;
            float _Range;
            float _Direction;
            float _OneMinus;
            float _AlphaTotal;

            v2f vert (appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);
                o.color = v.color;
                return o;
            }

            fixed4 frag (v2f i) : SV_Target
            {
                fixed4 shape = tex2D(_MainTex, i.uv);
                fixed4 col = sign(i.uv.y - (_Direction * _Lerp + (1 - _Direction) * (1 - _Lerp)));
                col.a = saturate(col.a * shape.a) * _Alpha;
                col.a = col.a + smoothstep(_Range, 0, i.uv.y) * shape.a * (1 - _Direction) + smoothstep(_Range, 1, i.uv.y) * shape.a * _Direction;
                col.a += sign(col.r) * col.a;
                col.a = saturate(col.a);
                shape.a = abs(sign(_OneMinus) - col.a) * shape.a * _AlphaTotal;//col.a;
                return shape * i.color;
            }
            ENDCG
        }
    }
}

效果：

代码：

点此展开

Shader "Shiki/ScanHorizontal"
{
    Properties
    {
        _MainTex ("Texture", 2D) = "white" {}
        _Lerp ("Lerp", Range(0,1)) = 1
        _Direction ("Direction", Range(0, 1)) = 0
        _Range ("Range", Range(0,1)) = 0.2
        _OneMinus ("OneMinus", Range(0, 1)) = 0
        _AlphaTotal ("AlphaTotal", Range(0, 1)) = 1
    }
    SubShader
    {
        Tags { "RenderType"="Transparent" "Queue"="Transparent" }
        Blend SrcAlpha OneMinusSrcAlpha

        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag

            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
                fixed4 color : COLOR;
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 vertex : SV_POSITION;
                fixed4 color : COLOR;
            };

            sampler2D _MainTex;
            float4 _MainTex_ST;
            float _Lerp;
            float _Range;
            float _Direction;
            float _OneMinus;
            float _AlphaTotal;

            v2f vert (appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);
                o.color = v.color;
                return o;
            }

            fixed4 frag (v2f i) : SV_Target
            {
                fixed4 shape = tex2D(_MainTex, i.uv);
                fixed4 col = sign(i.uv.x - (_Direction * _Lerp + (1 - _Direction) * (1 - _Lerp)));
                col.a = col.a + smoothstep(_Range, 0, i.uv.x) * shape.a * (1 - _Direction) + smoothstep(_Range, 1, i.uv.x) * shape.a * _Direction;
                col.a += sign(col.r) * col.a;
                col.a = saturate(col.a);
                shape.a = abs(sign(_OneMinus) - col.a) * shape.a * _AlphaTotal;//col.a;
                return shape * i.color;
            }
            ENDCG
        }
    }
}

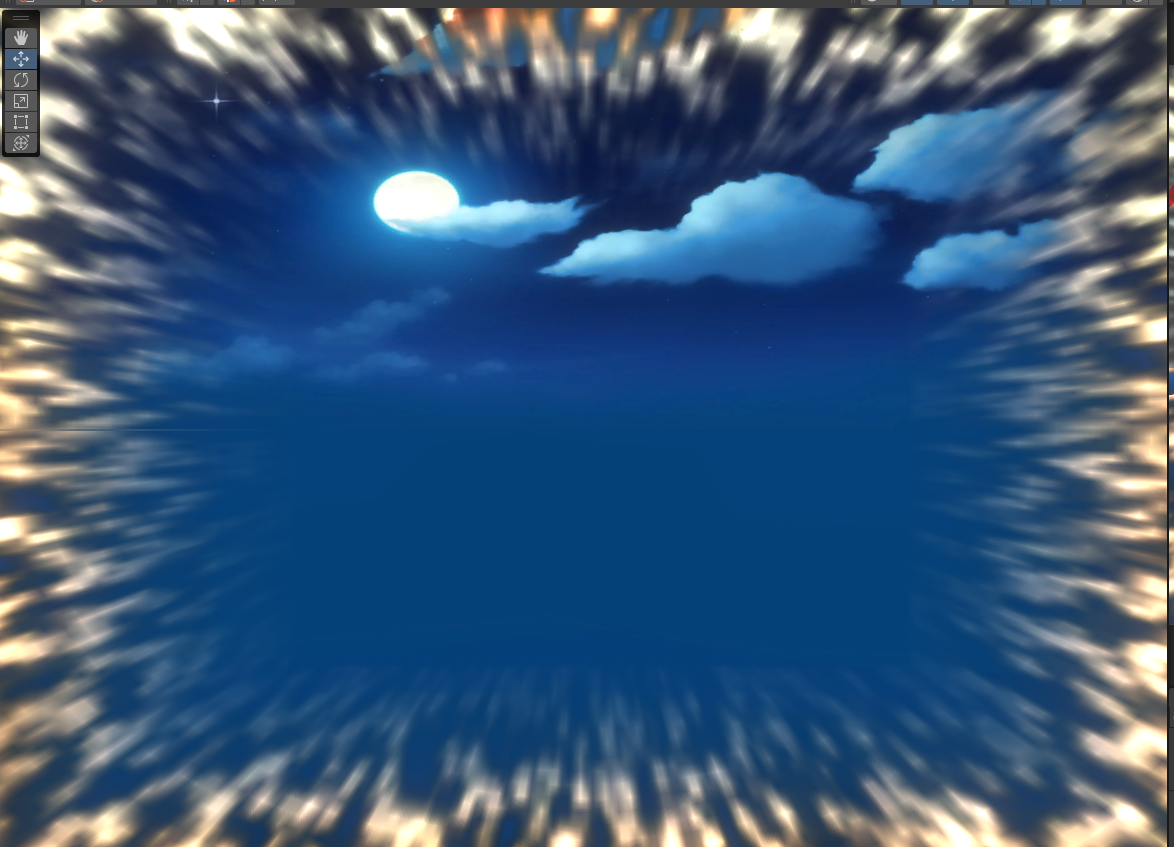

10. 屏幕特效

效果：

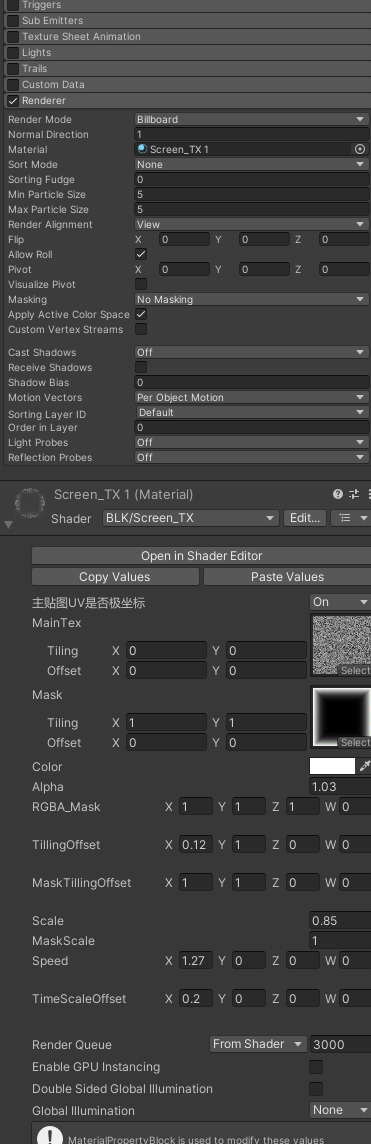

参数：

代码：

点此展开

// Made with Amplify Shader Editor v1.9.3.2
// Available at the Unity Asset Store - http://u3d.as/y3X
Shader "Shiki/Screen_TX"
{
	Properties
	{
		[Enum(Off,0,On,1)]_toggleUV("主贴图UV是否极坐标", Float) = 1
		_MainTex("MainTex", 2D) = "white" {}
		_Mask("Mask", 2D) = "white" {}
		_Color("Color", Color) = (1,1,1,1)
		_Alpha("Alpha", Float) = 1
		_RGBA_Mask("RGBA_Mask", Vector) = (1,0,0,0)
		_TillingOffset("TillingOffset", Vector) = (1,1,0,0)
		_MaskTillingOffset("MaskTillingOffset", Vector) = (1,1,0,0)
		_Scale("Scale", Float) = 1
		_MaskScale("MaskScale", Float) = 1
		_Speed("Speed", Vector) = (1,1,0,0)
		_TimeScaleOffset("TimeScaleOffset", Vector) = (1,1,0,0)

	}

	SubShader
	{


		Tags { "RenderType"="Opaque" "Queue"="Transparent" }
	LOD 100

		CGINCLUDE
		#pragma target 3.0
		ENDCG
		Blend SrcAlpha OneMinusSrcAlpha
		AlphaToMask Off
		Cull Off
		ColorMask RGBA
		ZWrite Off
		ZTest LEqual
		Offset 0 , 0



		Pass
		{
			Name "Unlit"

			CGPROGRAM



			#ifndef UNITY_SETUP_STEREO_EYE_INDEX_POST_VERTEX
			//only defining to not throw compilation error over Unity 5.5
			#define UNITY_SETUP_STEREO_EYE_INDEX_POST_VERTEX(input)
			#endif
			#pragma vertex vert
			#pragma fragment frag
			#pragma multi_compile_instancing
			#include "UnityCG.cginc"
			#include "UnityShaderVariables.cginc"


			struct appdata
			{
				float4 vertex : POSITION;
				float4 color : COLOR;

				UNITY_VERTEX_INPUT_INSTANCE_ID
			};

			struct v2f
			{
				float4 vertex : SV_POSITION;
				#ifdef ASE_NEEDS_FRAG_WORLD_POSITION
				float3 worldPos : TEXCOORD0;
				#endif
				float4 ase_texcoord1 : TEXCOORD1;
				float4 ase_color : COLOR;
				UNITY_VERTEX_INPUT_INSTANCE_ID
				UNITY_VERTEX_OUTPUT_STEREO
			};

			uniform sampler2D _MainTex;
			uniform float2 _TimeScaleOffset;
			uniform float2 _Speed;
			uniform float _toggleUV;
			uniform float4 _TillingOffset;
			uniform float4 _Color;
			uniform float _Scale;
			uniform float _Alpha;
			uniform float4 _RGBA_Mask;
			uniform sampler2D _Mask;
			uniform float4 _MaskTillingOffset;
			uniform float _MaskScale;


			v2f vert ( appdata v )
			{
				v2f o;
				UNITY_SETUP_INSTANCE_ID(v);
				UNITY_INITIALIZE_VERTEX_OUTPUT_STEREO(o);
				UNITY_TRANSFER_INSTANCE_ID(v, o);

				float4 ase_clipPos = UnityObjectToClipPos(v.vertex);
				float4 screenPos = ComputeScreenPos(ase_clipPos);
				o.ase_texcoord1 = screenPos;

				o.ase_color = v.color;
				float3 vertexValue = float3(0, 0, 0);
				#if ASE_ABSOLUTE_VERTEX_POS
				vertexValue = v.vertex.xyz;
				#endif
				vertexValue = vertexValue;
				#if ASE_ABSOLUTE_VERTEX_POS
				v.vertex.xyz = vertexValue;
				#else
				v.vertex.xyz += vertexValue;
				#endif
				o.vertex = UnityObjectToClipPos(v.vertex);

				#ifdef ASE_NEEDS_FRAG_WORLD_POSITION
				o.worldPos = mul(unity_ObjectToWorld, v.vertex).xyz;
				#endif
				return o;
			}

			float4 frag (v2f i ) : SV_Target
			{
				UNITY_SETUP_INSTANCE_ID(i);
				UNITY_SETUP_STEREO_EYE_INDEX_POST_VERTEX(i);
				float4 finalColor;
				#ifdef ASE_NEEDS_FRAG_WORLD_POSITION
				float3 WorldPosition = i.worldPos;
				#endif
				float mulTime18 = _Time.y * _TimeScaleOffset.x;
				float2 appendResult16 = (float2(_Speed.x , _Speed.y));
				float4 screenPos = i.ase_texcoord1;
				float4 ase_screenPosNorm = screenPos / screenPos.w;
				ase_screenPosNorm.z = ( UNITY_NEAR_CLIP_VALUE >= 0 ) ? ase_screenPosNorm.z : ase_screenPosNorm.z * 0.5 + 0.5;
				float2 appendResult9 = (float2(ase_screenPosNorm.x , ase_screenPosNorm.y));
				float2 appendResult35 = (float2(ase_screenPosNorm.x , ase_screenPosNorm.y));
				float2 temp_output_36_0 = (appendResult35*2.0 + -1.0);
				float2 break43 = temp_output_36_0;
				float2 appendResult46 = (float2(length( temp_output_36_0 ) , (0.0 + (atan2( break43.y , break43.x ) - 0.0) * (1.0 - 0.0) / (UNITY_PI - 0.0))));
				float2 lerpResult48 = lerp( appendResult9 , appendResult46 , _toggleUV);
				float2 appendResult13 = (float2(_TillingOffset.x , _TillingOffset.y));
				float2 appendResult14 = (float2(_TillingOffset.z , _TillingOffset.w));
				float2 panner10 = ( ( mulTime18 + _TimeScaleOffset.y ) * appendResult16 + (lerpResult48*appendResult13 + appendResult14));
				float4 tex2DNode1 = tex2D( _MainTex, panner10 );
				float2 appendResult33 = (float2(_MaskTillingOffset.x , _MaskTillingOffset.y));
				float2 appendResult32 = (float2(_MaskTillingOffset.z , _MaskTillingOffset.w));
				float4 appendResult5 = (float4(( tex2DNode1 * _Color * _Scale * i.ase_color ).rgb , ( _Alpha * ( ( tex2DNode1.r * _RGBA_Mask.x ) + ( tex2DNode1.g * _RGBA_Mask.y ) + ( tex2DNode1.b * _RGBA_Mask.z ) + ( tex2DNode1.a * _RGBA_Mask.w ) ) * ( tex2D( _Mask, (appendResult9*appendResult33 + appendResult32) ) * _MaskScale ) ).r));


				finalColor = appendResult5;
				return finalColor;
			}
			ENDCG
		}
	}
	CustomEditor "ASEMaterialInspector"

	Fallback Off
}
/*ASEBEGIN
Version=19302
Node;AmplifyShaderEditor.ScreenPosInputsNode;8;-3424.466,-503.7861;Float;False;0;False;0;5;FLOAT4;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.DynamicAppendNode;35;-3189.624,-261.7405;Inherit;True;FLOAT2;4;0;FLOAT;0;False;1;FLOAT;0;False;2;FLOAT;0;False;3;FLOAT;0;False;1;FLOAT2;0
Node;AmplifyShaderEditor.ScaleAndOffsetNode;36;-2867.845,-257.2079;Inherit;True;3;0;FLOAT2;0,0;False;1;FLOAT;2;False;2;FLOAT;-1;False;1;FLOAT2;0
Node;AmplifyShaderEditor.BreakToComponentsNode;43;-2595.251,77.86584;Inherit;False;FLOAT2;1;0;FLOAT2;0,0;False;16;FLOAT;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4;FLOAT;5;FLOAT;6;FLOAT;7;FLOAT;8;FLOAT;9;FLOAT;10;FLOAT;11;FLOAT;12;FLOAT;13;FLOAT;14;FLOAT;15
Node;AmplifyShaderEditor.PiNode;55;-2457.88,369.1848;Inherit;False;1;0;FLOAT;1;False;1;FLOAT;0
Node;AmplifyShaderEditor.ATan2OpNode;44;-2421.251,83.86584;Inherit;True;2;0;FLOAT;0;False;1;FLOAT;0;False;1;FLOAT;0
Node;AmplifyShaderEditor.LengthOpNode;37;-2464.544,-243.7079;Inherit;True;1;0;FLOAT2;0,0;False;1;FLOAT;0
Node;AmplifyShaderEditor.TFHCRemapNode;45;-2168.252,115.8658;Inherit;False;5;0;FLOAT;0;False;1;FLOAT;0;False;2;FLOAT;3.141593;False;3;FLOAT;0;False;4;FLOAT;1;False;1;FLOAT;0
Node;AmplifyShaderEditor.Vector4Node;12;-1617.439,-203.2669;Inherit;False;Property;_TillingOffset;TillingOffset;6;0;Create;True;0;0;0;False;0;False;1,1,0,0;1,1,0,0;0;5;FLOAT4;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.Vector2Node;51;-1485.661,136.278;Inherit;False;Property;_TimeScaleOffset;TimeScaleOffset;11;0;Create;True;0;0;0;False;0;False;1,1;1,0;0;3;FLOAT2;0;FLOAT;1;FLOAT;2
Node;AmplifyShaderEditor.DynamicAppendNode;9;-1480.383,-443.9041;Inherit;False;FLOAT2;4;0;FLOAT;0;False;1;FLOAT;0;False;2;FLOAT;0;False;3;FLOAT;0;False;1;FLOAT2;0
Node;AmplifyShaderEditor.RangedFloatNode;49;-1707.343,-335.0562;Inherit;False;Property;_toggleUV;主贴图UV是否极坐标;0;1;[Enum];Create;False;0;2;Off;0;On;1;0;False;0;False;1;1;0;0;0;1;FLOAT;0
Node;AmplifyShaderEditor.DynamicAppendNode;46;-1975.829,-150.7183;Inherit;True;FLOAT2;4;0;FLOAT;0;False;1;FLOAT;0;False;2;FLOAT;0;False;3;FLOAT;0;False;1;FLOAT2;0
Node;AmplifyShaderEditor.DynamicAppendNode;14;-1396.439,-113.2668;Inherit;False;FLOAT2;4;0;FLOAT;0;False;1;FLOAT;0;False;2;FLOAT;0;False;3;FLOAT;0;False;1;FLOAT2;0
Node;AmplifyShaderEditor.DynamicAppendNode;13;-1397.439,-206.2669;Inherit;False;FLOAT2;4;0;FLOAT;0;False;1;FLOAT;0;False;2;FLOAT;0;False;3;FLOAT;0;False;1;FLOAT2;0
Node;AmplifyShaderEditor.Vector2Node;50;-1441.661,10.27795;Inherit;False;Property;_Speed;Speed;10;0;Create;True;0;0;0;False;0;False;1,1;1,1;0;3;FLOAT2;0;FLOAT;1;FLOAT;2
Node;AmplifyShaderEditor.SimpleTimeNode;18;-1134.07,126.9291;Inherit;False;1;0;FLOAT;1;False;1;FLOAT;0
Node;AmplifyShaderEditor.LerpOp;48;-1222.343,-422.0562;Inherit;False;3;0;FLOAT2;0,0;False;1;FLOAT2;0,0;False;2;FLOAT;0;False;1;FLOAT2;0
Node;AmplifyShaderEditor.DynamicAppendNode;16;-1125.502,2.695892;Inherit;False;FLOAT2;4;0;FLOAT;0;False;1;FLOAT;0;False;2;FLOAT;0;False;3;FLOAT;0;False;1;FLOAT2;0
Node;AmplifyShaderEditor.Vector4Node;31;-1095.063,854.8722;Inherit;False;Property;_MaskTillingOffset;MaskTillingOffset;7;0;Create;True;0;0;0;False;0;False;1,1,0,0;1,1,0,0;0;5;FLOAT4;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.SimpleAddOpNode;19;-939.0702,162.9291;Inherit;False;2;2;0;FLOAT;0;False;1;FLOAT;0;False;1;FLOAT;0
Node;AmplifyShaderEditor.ScaleAndOffsetNode;11;-1133.439,-234.267;Inherit;False;3;0;FLOAT2;0,0;False;1;FLOAT2;1,0;False;2;FLOAT2;0,0;False;1;FLOAT2;0
Node;AmplifyShaderEditor.DynamicAppendNode;32;-874.064,944.8725;Inherit;False;FLOAT2;4;0;FLOAT;0;False;1;FLOAT;0;False;2;FLOAT;0;False;3;FLOAT;0;False;1;FLOAT2;0
Node;AmplifyShaderEditor.DynamicAppendNode;33;-875.064,851.8722;Inherit;False;FLOAT2;4;0;FLOAT;0;False;1;FLOAT;0;False;2;FLOAT;0;False;3;FLOAT;0;False;1;FLOAT2;0
Node;AmplifyShaderEditor.PannerNode;10;-816.4438,-101.9479;Inherit;False;3;0;FLOAT2;0,0;False;2;FLOAT2;0,0;False;1;FLOAT;1;False;1;FLOAT2;0
Node;AmplifyShaderEditor.SamplerNode;1;-610.2937,-137.6392;Inherit;True;Property;_MainTex;MainTex;1;0;Create;True;0;0;0;False;0;False;-1;None;4ad524818053b0949b65ba4d061ccac5;True;0;False;white;Auto;False;Object;-1;Auto;Texture2D;8;0;SAMPLER2D;;False;1;FLOAT2;0,0;False;2;FLOAT;0;False;3;FLOAT2;0,0;False;4;FLOAT2;0,0;False;5;FLOAT;1;False;6;FLOAT;0;False;7;SAMPLERSTATE;;False;5;COLOR;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.Vector4Node;26;-651.1687,470.1977;Inherit;False;Property;_RGBA_Mask;RGBA_Mask;5;0;Create;True;0;0;0;False;0;False;1,0,0,0;1,1,1,0;0;5;FLOAT4;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.ScaleAndOffsetNode;34;-611.064,823.8719;Inherit;False;3;0;FLOAT2;0,0;False;1;FLOAT2;1,0;False;2;FLOAT2;0,0;False;1;FLOAT2;0
Node;AmplifyShaderEditor.SimpleMultiplyOpNode;22;-266.1687,350.1977;Inherit;False;2;2;0;FLOAT;0;False;1;FLOAT;0;False;1;FLOAT;0
Node;AmplifyShaderEditor.SimpleMultiplyOpNode;23;-263.1687,464.1977;Inherit;False;2;2;0;FLOAT;0;False;1;FLOAT;0;False;1;FLOAT;0
Node;AmplifyShaderEditor.SimpleMultiplyOpNode;24;-261.1687,571.1977;Inherit;False;2;2;0;FLOAT;0;False;1;FLOAT;0;False;1;FLOAT;0
Node;AmplifyShaderEditor.SimpleMultiplyOpNode;25;-261.1687,671.1977;Inherit;False;2;2;0;FLOAT;0;False;1;FLOAT;0;False;1;FLOAT;0
Node;AmplifyShaderEditor.SamplerNode;28;-305.9966,849.3268;Inherit;True;Property;_Mask;Mask;2;0;Create;True;0;0;0;False;0;False;-1;None;c87093dfaecbca442a86bc15accd31d0;True;0;False;white;Auto;False;Object;-1;Auto;Texture2D;8;0;SAMPLER2D;;False;1;FLOAT2;0,0;False;2;FLOAT;0;False;3;FLOAT2;0,0;False;4;FLOAT2;0,0;False;5;FLOAT;1;False;6;FLOAT;0;False;7;SAMPLERSTATE;;False;5;COLOR;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.RangedFloatNode;29;-221.4968,1111.927;Inherit;False;Property;_MaskScale;MaskScale;9;0;Create;True;0;0;0;False;0;False;1;1;0;0;0;1;FLOAT;0
Node;AmplifyShaderEditor.ColorNode;7;-601.2937,71.36084;Inherit;False;Property;_Color;Color;3;0;Create;True;0;0;0;False;0;False;1,1,1,1;1,1,1,1;True;0;5;COLOR;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.RangedFloatNode;4;-556.2937,280.3608;Inherit;False;Property;_Scale;Scale;8;0;Create;True;0;0;0;False;0;False;1;0.85;0;0;0;1;FLOAT;0
Node;AmplifyShaderEditor.SimpleAddOpNode;27;-53.98921,494.2824;Inherit;False;4;4;0;FLOAT;0;False;1;FLOAT;0;False;2;FLOAT;0;False;3;FLOAT;0;False;1;FLOAT;0
Node;AmplifyShaderEditor.RangedFloatNode;6;-53.30715,292.8151;Inherit;False;Property;_Alpha;Alpha;4;0;Create;True;0;0;0;False;0;False;1;0.5;0;0;0;1;FLOAT;0
Node;AmplifyShaderEditor.SimpleMultiplyOpNode;30;67.10324,988.4271;Inherit;False;2;2;0;COLOR;0,0,0,0;False;1;FLOAT;0;False;1;COLOR;0
Node;AmplifyShaderEditor.VertexColorNode;52;-596.7842,-359.4721;Inherit;False;0;5;COLOR;0;FLOAT;1;FLOAT;2;FLOAT;3;FLOAT;4
Node;AmplifyShaderEditor.SimpleMultiplyOpNode;3;-297.2937,77.36084;Inherit;False;4;4;0;COLOR;0,0,0,0;False;1;COLOR;0,0,0,0;False;2;FLOAT;0;False;3;COLOR;0,0,0,0;False;1;COLOR;0
Node;AmplifyShaderEditor.SimpleMultiplyOpNode;21;178.6203,372.3519;Inherit;False;3;3;0;FLOAT;0;False;1;FLOAT;0;False;2;COLOR;0,0,0,0;False;1;COLOR;0
Node;AmplifyShaderEditor.DynamicAppendNode;5;417.8781,79.6699;Inherit;False;FLOAT4;4;0;FLOAT3;0,0,0;False;1;FLOAT;0;False;2;FLOAT;0;False;3;FLOAT;0;False;1;FLOAT4;0
Node;AmplifyShaderEditor.TemplateMultiPassMasterNode;0;643.1719,-16.69092;Float;False;True;-1;2;ASEMaterialInspector;100;5;BLK/Screen_TX;0770190933193b94aaa3065e307002fa;True;Unlit;0;0;Unlit;2;True;True;2;5;False;;10;False;;0;1;False;;0;False;;True;0;False;;0;False;;False;False;False;False;False;False;False;False;False;True;0;False;;True;True;2;False;;False;True;True;True;True;True;0;False;;False;False;False;False;False;False;False;True;False;0;False;;255;False;;255;False;;0;False;;0;False;;0;False;;0;False;;0;False;;0;False;;0;False;;0;False;;True;True;2;False;;True;3;False;;True;True;0;False;;0;False;;True;2;RenderType=Opaque=RenderType;Queue=Transparent=Queue=0;True;2;False;0;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;False;0;;0;0;Standard;1;Vertex Position,InvertActionOnDeselection;1;0;0;1;True;False;;False;0
WireConnection;35;0;8;1
WireConnection;35;1;8;2
WireConnection;36;0;35;0
WireConnection;43;0;36;0
WireConnection;44;0;43;1
WireConnection;44;1;43;0
WireConnection;37;0;36;0
WireConnection;45;0;44;0
WireConnection;45;2;55;0
WireConnection;9;0;8;1
WireConnection;9;1;8;2
WireConnection;46;0;37;0
WireConnection;46;1;45;0
WireConnection;14;0;12;3
WireConnection;14;1;12;4
WireConnection;13;0;12;1
WireConnection;13;1;12;2
WireConnection;18;0;51;1
WireConnection;48;0;9;0
WireConnection;48;1;46;0
WireConnection;48;2;49;0
WireConnection;16;0;50;1
WireConnection;16;1;50;2
WireConnection;19;0;18;0
WireConnection;19;1;51;2
WireConnection;11;0;48;0
WireConnection;11;1;13;0
WireConnection;11;2;14;0
WireConnection;32;0;31;3
WireConnection;32;1;31;4
WireConnection;33;0;31;1
WireConnection;33;1;31;2
WireConnection;10;0;11;0
WireConnection;10;2;16;0
WireConnection;10;1;19;0
WireConnection;1;1;10;0
WireConnection;34;0;9;0
WireConnection;34;1;33;0
WireConnection;34;2;32;0
WireConnection;22;0;1;1
WireConnection;22;1;26;1
WireConnection;23;0;1;2
WireConnection;23;1;26;2
WireConnection;24;0;1;3
WireConnection;24;1;26;3
WireConnection;25;0;1;4
WireConnection;25;1;26;4
WireConnection;28;1;34;0
WireConnection;27;0;22;0
WireConnection;27;1;23;0
WireConnection;27;2;24;0
WireConnection;27;3;25;0
WireConnection;30;0;28;0
WireConnection;30;1;29;0
WireConnection;3;0;1;0
WireConnection;3;1;7;0
WireConnection;3;2;4;0
WireConnection;3;3;52;0
WireConnection;21;0;6;0
WireConnection;21;1;27;0
WireConnection;21;2;30;0
WireConnection;5;0;3;0
WireConnection;5;3;21;0
WireConnection;0;0;5;0
ASEEND*/
//CHKSM=8361E30B4D3F1B6506DE49E77982A3146C215563

拓展：
- 需要放在粒子系统上使用，需要该粒子被摄像机看到，即修改MinPerticleSize

11. 两种贴图切换

参数：

代码：

点此展开

Shader "Shiki/TrueOrFalse"
{
    Properties
    {
        _MainTex ("TextureTrue", 2D) = "white" {}
        _MainTex_False ("TextureFalse", 2D) = "white" {}
        [Toggle] _True ("True", Float) = 0
    }
    SubShader
    {
        Tags { "RenderType"="Transparent" "Queue"="Transparent" }
        Blend SrcAlpha OneMinusSrcAlpha

        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            #include "UnityCG.cginc"

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
                float4 color : COLOR;
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 vertex : SV_POSITION;
                float4 color : COLOR;
            };

            sampler2D _MainTex;
            sampler2D _MainTex_False;
            float4 _MainTex_ST;
            float4 _MainTex_False_ST;
            float _True;

            v2f vert (appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);
                o.color = v.color;
                return o;
            }

            fixed4 frag (v2f i) : SV_Target
            {
                fixed4 col;
                col = _True ? tex2D(_MainTex, i.uv) : tex2D(_MainTex_False, i.uv);
                return col * i.color;
            }
            ENDCG
        }
    }
}

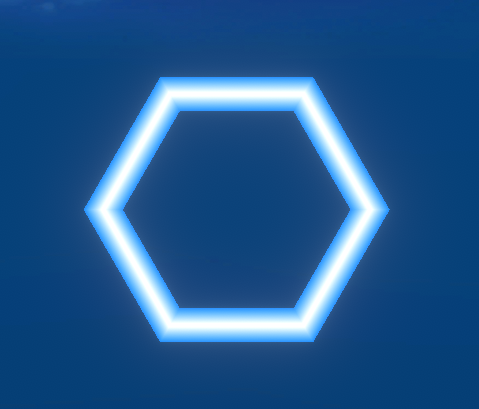

12. 两个正多边形进行布尔运算或混合

效果：

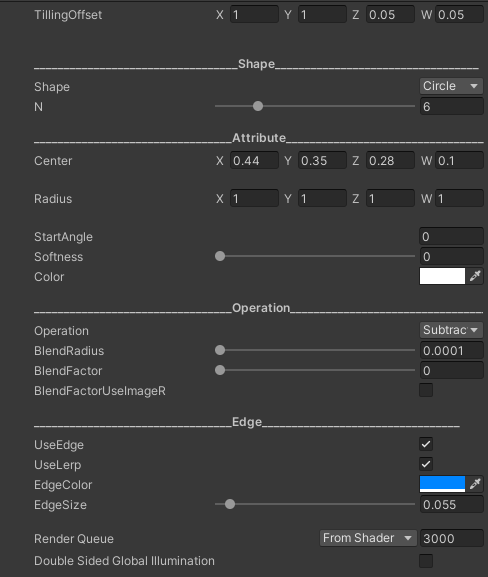

参数：

代码：

点此展开

Shader "Shiki/SDFImage"
{
    Properties
    {
        [hideInInspector] _MainTex("Sprite Texture", 2D) = "white" {}
        _TillingOffset ("TillingOffset", Vector) = (1, 1, 0, 0)
        [Header(__________________________________Shape__________________________________)][Space(10)]
        [Enum(Circle, 0, Rect, 1, RegularPolygon, 2)] _Shape ("Shape", Float) = 0
        [IntRange] _N ("N", Range(0, 30)) = 3
        [Header(_________________________________Attribute_________________________________)][Space(10)]
        _Center ("Center", Vector) = (0.5, 0.5, 0.5, 0.5)
        _Radius ("Radius", Vector) = (1, 1, 1, 1)
        _StartAngle ("StartAngle", Float) = 0
        _Softness("Softness", Range(0, 1)) = 0
        _Color ("Color", Color) = (1, 1, 1, 1)
        [Header(_________________________________Operation_________________________________)][Space(10)]
        [Enum(Union, 0, Intersection, 1, Subtraction, 2, ShapeBlending, 3)] _Operation ("Operation", Float) = 0
        _BlendRadius("BlendRadius", Range(0.0001, 3.0)) = 0.0001
        _BlendFactor ("BlendFactor", Range(0, 1)) = 0
        [Toggle] _BlendFactorUseImageR ("BlendFactorUseImageR", Float) = 0
        [hideInInspector][IntRange] _SDFDataLength ("SDFDataLength", Range(0, 10)) = 2
        [Header(_________________________________Edge_________________________________)][Space(10)]
        [Toggle] _UseEdge ("UseEdge", Float) = 0
        [Toggle] _UseLerp ("UseLerp", Float) = 0
        _EdgeColor ("EdgeColor", Color) = (.6, .6, .6, 1)
        _EdgeSize ("EdgeSize", Range(0.0001, 1)) = 0.001
    }

    SubShader
    {
        Tags {"Queue" = "Transparent" "RenderType" = "Transparent" "CanUseSpriteAtlas" = "True"}

        Blend SrcAlpha OneMinusSrcAlpha
        ZWrite Off
        Cull Off

        Pass
        {
            CGPROGRAM
            #pragma vertex vert
            #pragma fragment frag
            #include "UnityCG.cginc"

            #define SDFOperation_Union 0
            #define SDFOperation_Intersection 1
            #define SDFOperation_Subtraction 2
            #define SDFOperation_ShapeBlending 3

            #define Shape_Circle 0
            #define Shape_Rect 1
            #define Shape_RegularPolygon 2

            struct appdata
            {
                float4 vertex : POSITION;
                float2 uv : TEXCOORD0;
                float4 color: COLOR;
            };

            struct v2f
            {
                float2 uv : TEXCOORD0;
                float4 vertex : SV_POSITION;
                fixed4 color: COLOR;
            };

            sampler2D _MainTex;
            float4 _MainTex_ST;
            float4 _SDFDataBuffer[16];
            int _SDFDataLength;
            float _BlendRadius;
            float _Softness;
            float4 _Center;
            float4 _Radius;
            float _N;
            float _StartAngle;
            float _Shape;
            float _Operation;
            float _BlendFactor;
            float4 _TillingOffset;
            float _BlendFactorUseImageR;
            float _EdgeSize;
            float _UseEdge;
            float _UseLerp;
            float4 _Color;
            float4 _EdgeColor;

            #define PI 3.141592653589793238

            float smin(float a, float b, float k) {
                float h = max(k - abs(a - b), 0.0f) / k;
                return min(a, b) - h * h * k * 0.25f;
            }

            float smax(float a, float b, float k) {
                float h = max(k - abs(a - b), 0.0f) / k;
                return max(a, b) + h * h * k * 0.25f;
            }

            float distanceToLine(float2 pt, float2 p0, float2 p1)
            {
                float2 v = p1 - p0;
                float2 w = pt - p0;
                float c1 = dot(w, v);
                float c2 = dot(v, v);
                return length(w - v * (c1 / c2));
            }

            v2f vert(appdata v)
            {
                v2f o;
                o.vertex = UnityObjectToClipPos(v.vertex);
                v.uv = v.uv * _TillingOffset.xy;
                v.uv -= _TillingOffset.zw;
                o.uv = TRANSFORM_TEX(v.uv, _MainTex);
                o.color = v.color;
                return o;
            }

            float sdfCircle(float2 pt, inout uint index)
            {
                float2 center = index == 0 ? _Center.xy : _Center.zw;

                float2 radius = (index == 0 ? _Radius.xy : _Radius.zw)* 0.5f;

                float dx = center.x - pt.x;
                float dy = center.y - pt.y;
                dx = dx / radius.x;
                dy = dy / radius.y;
                float normalizedDistance = sqrt(dx * dx + dy * dy);
                return 1 - normalizedDistance;
            }

            float sdfRect(float2 pt, inout uint index)
            {
                float2 center = index == 0 ? _Center.xy : _Center.zw;

                float2 sizeHalf = (index == 0 ? _Radius.xy : _Radius.zw)* 0.5f;

                float dx = center.x - pt.x;
                float dy = center.y - pt.y;
                dx = dx / sizeHalf.x;
                dy = dy / sizeHalf.y;

                float2 normalizedDistance = float2(abs(dx) - 0.5, abs(dy) - 0.5);

                float dist = max(max(normalizedDistance.x, normalizedDistance.y), 0);
                return 0.5 - dist;
            }

            float sdfRegularPolygon(float2 pt, inout uint index)
            {
                float2 center = index == 0 ? _Center.xy : _Center.zw;

                float2 sizeHalf = (index == 0 ? _Radius.xy : _Radius.zw)* 0.5f;
                int n = (int)_N;
                float startAngle = radians(_StartAngle);

                float dx = pt.x - center.x;
                float dy = pt.y - center.y;
                dx = dx / sizeHalf.x;
                dy = dy / sizeHalf.y;

                float2 pointLocal = float2(dx, dy);

                float angle = 2 * PI / n;
                float halfAngle = angle / 2;
                float cosHalfAngle = cos(halfAngle);
                float sinHalfAngle = sin(halfAngle);

                float radius = cosHalfAngle / (1.0f + cosHalfAngle);

                float pointAngle = atan2(pointLocal.y, pointLocal.x) - startAngle;
                if (pointAngle < 0)
                {
                    pointAngle += 2 * PI;
                }

                int closestEdgeIndex = (int)floor(pointAngle / angle);

                float angleEdge = closestEdgeIndex * angle + startAngle;
                float2 pointEdge = float2(radius * cos(angleEdge), radius * sin(angleEdge));
                float angleNextEdge = (closestEdgeIndex + 1) * angle + startAngle;
                float2 pointNextEdge = float2(radius * cos(angleNextEdge), radius * sin(angleNextEdge));

                float distToSegment = distanceToLine(pointLocal,pointEdge,pointNextEdge );

                return radius - distToSegment;
            }

            fixed4 frag(v2f i) : SV_Target
            {
                float sdf = 0;
                float sdfTemp = 0;
                int operation = SDFOperation_Union;
                int shape = Shape_Circle;

                for (int j = 0; j < (int)_SDFDataLength;j++)
                {
                    bool first = j == 0;

                    shape = _Shape;

                    switch (shape)
                    {
                    case Shape_Circle:
                        sdfTemp = sdfCircle(i.uv, j);
                        break;
                    case Shape_Rect:
                        sdfTemp = sdfRect(i.uv, j);
                        break;
                    case Shape_RegularPolygon:
                        sdfTemp = sdfRegularPolygon(i.uv, j);
                        break;
                    }
                    sdfTemp-=_BlendRadius;

                    operation = _Operation;

                    if (first)
                    {

                        sdf = sdfTemp;
                    }
                    else
                    {
                        switch (operation)
                        {
                        case SDFOperation_Union:
                            sdf = smax(sdf, sdfTemp, _BlendRadius);
                            break;
                        case SDFOperation_Intersection:
                            sdf = smin(sdf, sdfTemp, _BlendRadius);
                            break;
                        case SDFOperation_Subtraction:
                            sdf = smin(sdf, -sdfTemp, _BlendRadius);
                            break;
                        case SDFOperation_ShapeBlending:
                            float factor = _BlendFactorUseImageR ? i.color.r : _BlendFactor;
                            sdf = (1 - factor) * sdf + factor * sdfTemp;
                            break;
                        }
                    }
                }
                float4 col = sdf;

                float halfSoft = _Softness * 0.5f;
                col = smoothstep(-halfSoft, halfSoft, sdf);

                col *= _Color;

                if (sdf < _EdgeSize && sdf >= 0)
                {
                    col = _UseEdge ? _UseLerp ? lerp(_EdgeColor, col, sdf * 1.0 / _EdgeSize) : _EdgeColor : col;
                }

                col.a *= i.color.a;

                return col;
            }

            ENDCG
        }
    }
}

uni_shiki

前言

内容

1. 模拟音频

2. 故障效果(红蓝通道偏移+UV扰动)

3. Hue(色相、明度、饱和度)

4. UV流动

5. 序列帧图片播放

6. 扫描光效果

7. 过场黑幕

8. 梦境效果

9. 按轴向显示效果

10. 屏幕特效

11. 两种贴图切换

12. 两个正多边形进行布尔运算或混合

本作品采用 知识共享署名-相同方式共享 4.0 国际许可协议 进行许可

本作品采用知识共享署名-相同方式共享 4.0 国际许可协议进行许可
